Item

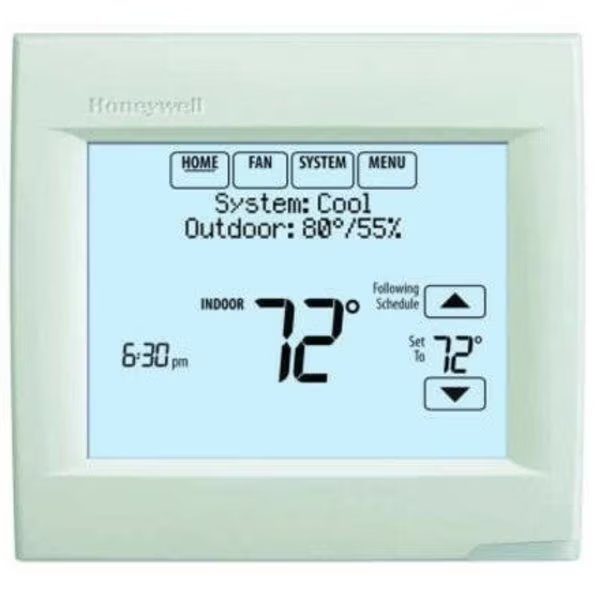

Programmable Thermostat
Mounting Type
Horizontal or Vertical
Mounting Location
Electrical Box
Control Range
Heat 40 Degrees to 90 Degrees F, Cool 50 Degrees to 99 Degrees F
System Switching
Auto-Heat-Cool-Off-Emergency
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery
Terminal Designations
R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, S1, S1
Includes
Mfr. No. TH8320R1003 and (3) AAA Thermostat Batteries
Fan Switching
Auto-On-Circulate
Features
Real Time Clock, Change Reminders Reminds You to Service or Replace the Air Filter, Humidifier Pad, Ultraviolet Lamp or Thermostat Batteries, Removable from Wall For Programming, Three replaceable AAA Alkaline Batteries Power Thermostats when 24 Vac Common is not Used. Non-Replaceable lithium Battery with Ten-Year Life Under Normal Use to Hold Calendar and Time Settings. Alkaline Batteries Keep Calendar and Time After Lithium Battery is no Longer Functional
Footnotes
1, 2, 3, 4, 6, 8
For Use With
Gas, Oil, Electric Heat, or Heat Pump, Outdoor or Indoor Remote Sensors
Temporary Program Override
Yes
Remote Sensing Capability
Yes
Green Certification or Other Recognition
ENERGY STAR
Dehumidification Control
Yes
Mounting
Horizontal or Vertical Electrical Box
Temporary Temperature Hold
Yes
Stages
2H/2C Conventional, 3H/2C Heat Pump
Type
Touch Screen Programmable Multi Stage, H/C or HP
Occupancy Sensor
Compatible with Occupancy Sensor
Thermostat Type
Low Voltage
Maximum Operating Temperature
120 Degrees F
Maximum Control Temperature
99 Degrees F
Wireless System Compatibility
RedLink
Compatible System Type
Electric Forced Air Furnaces, Gas Forced Air Furnaces, Heat Pump with Aux
Number of Heating Stages - Heat Pump System
3
Operating Humidity Range
5% to 90% RH
Fan Settings
Auto-Circulate-On
Operating Temperature Range
32 Degrees to 120 Degrees F
Application/Stages
Heat and Cool; 2H/2C Conventional, 3H/2C Heat Pump
System/Fan Settings
Auto-Cool-Emergency Heat-Heat-Off/Auto-Circulate-Follow Schedule-On
Number of Heating Stages - Conventional System
2
Programming Capability
7 Day
Number of Cooling Stages - Heat Pump System
2
Minimum Operating Temperature
32 Degrees F
Mounting Direction/Shape
Horizontal, Vertical
Minimum Operating Humidity
5 %
System Settings
Auto-Cool-Emergency Heat-Heat-Off
Electrical Connection Type
Hardwired
Temperature Control Range
40 Degrees to 99 Degrees F
Mounting Direction
Horizontal
Filter Change Reminder
Yes
Temperature Scale
Fahrenheit/Celsius
Number of Cooling Stages - Conventional System
2
Minimum Control Temperature
40 Degrees F
Temperature Sensitivity
+/-1.5 Degrees F
Temperature Differential
1 Degrees F
Maximum Operating Humidity
90 %
Temperature settings per day
4
Country of Origin (subject to change)
Mexico
