| Voltage | 120VAC |
| Max. Amps | 10 |
| Item | Pump Seal Failure Relay |
| Switch Type | SPDT |
| Contact Form | SPDT |
| Input Voltage | 120V AC |
| For Use With | Submersible Pumps |
| Rated Voltage | 120V AC |
| Socket Code | A |
| Current Rating | 10 A |
| Features | Full Status Indication, Pulsed Probes, Automatic Reset when Fault Condition Clears |
| Status Indicator | LED Indicator |
| Body Width | 1.71 in |
| Mounting Style | Plug-In |
| Power Consumption | 3 VA |
| Socket Code Configurator | Socket / Octal / 8 |
| Number of Pins | 8 |
| Seal Leak Minimum Resistance | 4,700 ohm |
| Contact Rating (DC) | 7 A @ 28V |
| Base Shape | Octal |
| Number of Channels | Single Channel |
| Response Time | 1 sec |
| Minimum Operating Temperature | -18 Degrees F |
| Maximum Operating Temperature | 149 Degrees F |
| Mechanical Operating Durability | 10,000,000 |
| Seal Leak Maximum Resistance | 100,000 ohm |
| Burden | 3 VA at 10 A |
| Body Depth | 2.9 in |
| Operating Current | 10 A at 240V AC (Resistive Load), 7 A at 28V DC (Resistive Load) |
| Contact Rating (AC) | 10 A @ 240V |
| Relay Function | Seal Leakage |
| Frequency | 50/60 Hz |
| Electrical Connection Type | Pin |
| Adjustment Method | Rotary Knob |
| Electrical Connection | 8-Pin Terminal |
| Relay Mounting Style | Socket |
| Body Height | 2.33 in |
| Standards | CE, cULus, cURus, UL Listed |
| Coil Voltage | 120V AC |
| Electrical Operating Durability | 100,000 |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

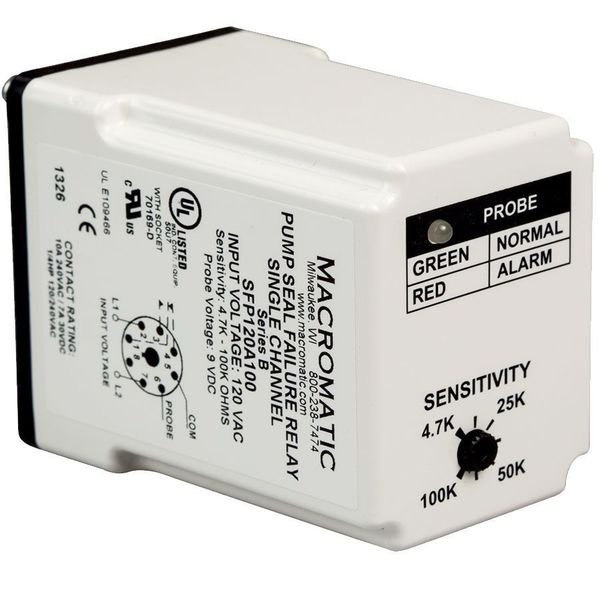

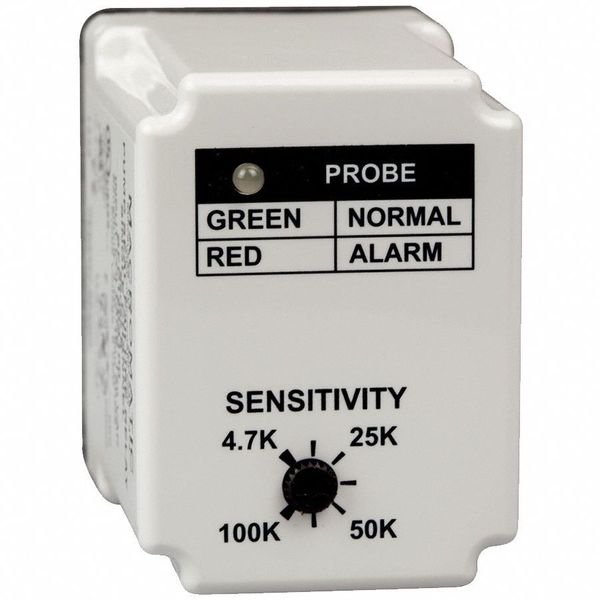

Pump Seal Failure Relay, SPDT, 8Pin, 120VAC, MACROMATIC, Mfr# SFP120A100
$78,25
Free shipping will be applied on orders over $50
Pump Seal Failure Relay, Contact Form SPDT, Current Rating 10 A, Electrical Connection 8-Pin Terminal, Input Voltage 120V AC, Number of Channels Single Channel, Number of Pins 8, Relay Function Seal Leakage, Seal Leak Minimum Resistance 4,700 ohm, Seal Leak Maximum Resistance 100,000 ohm, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 7 A @ 28V, Mounting Style Plug-In, Adjustment Method Rotary Knob, Base Shape Octal, Body Depth 2.9 in, Body Height 2.33 in
9999 in stock
Must order in multiples of 1
Subtotal:
$78.25
