Item

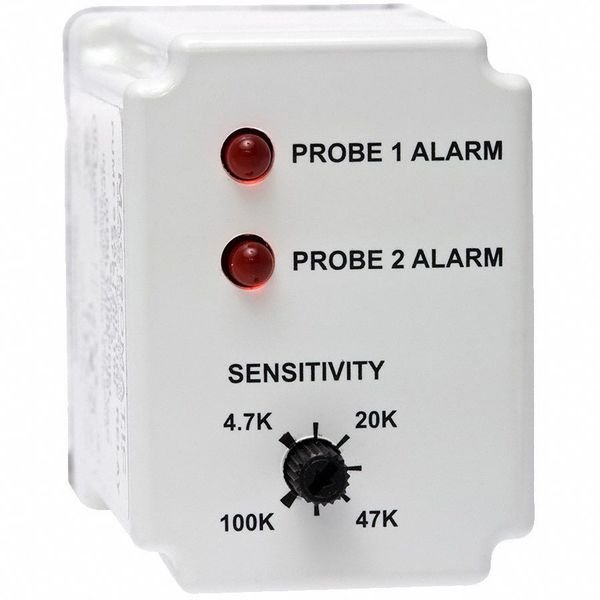

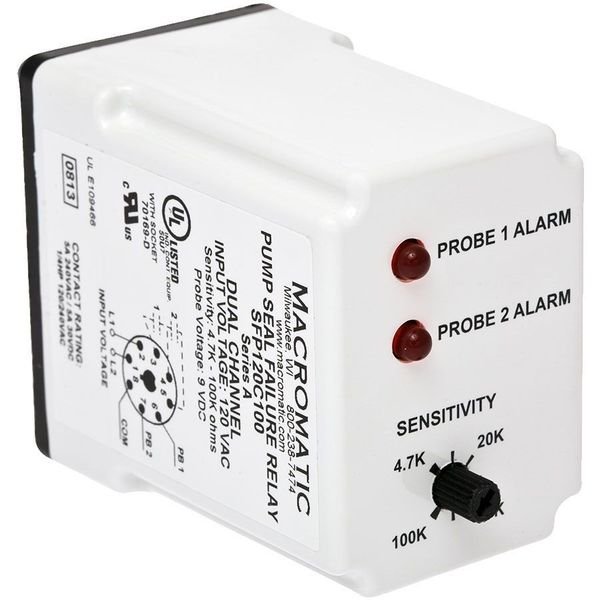

Pump Seal Failure Relay
For Use With
Submersible Pumps
Standards
CE, cULus, cURus, UL Listed
Contact Rating (DC)
5 A @ 28V
Mechanical Operating Durability
10,000,000
Contact Rating (AC)
5 A @ 240V
Relay Function
Seal Leakage
Electrical Connection
8-Pin Terminal
Maximum Operating Temperature
149 Degrees F
Minimum Operating Temperature
-18 Degrees F
Status Indicator
LED Indicator
Adjustment Method
Rotary Knob
Features
Full Status Indication, Pulsed Probes, Automatic Reset when Fault Condition Clears
Electrical Operating Durability
100,000
Seal Leak Maximum Resistance
100,000 ohm
Operating Current
5 A at 240V AC (Resistive Load), 5 A at 28V DC (Resistive Load)
Seal Leak Minimum Resistance
4,700 ohm
Number of Channels
Dual Channel
Temperature
-28°to 65°C (-18°to 149°F)
Enclosure Style
Plug-in case utilizing industry-standard 8 u0026 11 pin octal sockets
Configuration / Contact Rating
8 Pin Single Channel: SPDT10A @ 240V AC/7A @ 28V DC. 11 Pin Single Channel: DPDT7A @ 240V AC/28V DC. 8 Pin Dual Channel: (2) SPNO 5A @ 240V AC/28V DC
Sensitivity Range
4.7K to 100K ohms
Voltage Tolerance
AC Operation: +10/-15% of nominal at 50/60 Hz.
Probe Voltage
5V DC Pulsed
Life
Mechanical: 10,000,000 operations; Full Load: 100,000 operations
Indicator LEDs
Green ON with input voltage applied; Red ON when seal leak detected u0026 relay is energized.
Function Configuration
Dual Channel 8 Pin (2) SPNO
Country of Origin (subject to change)
United States
