| Promotion Restriction | Not eligible for promotion |
| Item | Hydraulic Pump |
| Oil Capacity (Cu.-In.) | 230 cu in |
| Reservoir Capacity (Gal.) | 1 gal |
| Oil Displacement @ 0 PSI | 60.00 cu in/min |
| Oil Displacement @ 10,000 PSI | 10 cu in/min |
| Operating Air PSI | 40 to 125 |
| Air Consumption (SCFM) | 12 |
| Height (In.) | 8.25 in |
| Actuation Type | Foot, Hand |
| Air Inlet NPT (In.) | 1/4 |
| Fluid Port NPT (In.) | 3/8 |
| Width (In.) | 7.9375 in |
| Capacity (PSI) | 10,000 |
| Includes | Air and Hydraulic Inlet Filter, Air Exhaust Muffler |
| Features | Ergonomic Design, Pedal Lock Function, Pressure Relief Valve |
| Type | Air Powered |
| Treadle | Three Position |
| dBA | 76 |
| Built-In | Internal Pressure Relief Valve |
| Length (In.) | 15.625 in |
| Overall Length | 17.2 in |
| Reservoir Capacity | 230 cu in |
| Flow Rate - Maximum | 10 cu in/min |
| Overall Width | 7.9 in |
| Air Consumption - Maximum | 12 scfm |
| Air Intake Pressure - Maximum | 125 psi |
| Air Intake Connection Type | FNPT |
| Operating Pressure - Maximum | 10,000 psi |
| Treadle Design | Three Position |
| Control Valve Function | Advance, Hold, Retract |
| Sound Level - Maximum | 76 dBA |
| Displacement @ No Load | 60 cu in/min |
| Media Intake Connection Size | 3/8 in |
| Control Valve Type | 3-Position, 3-Way |
| Overall Height | 8.2 in |
| Air Intake Connection Size | 1/4 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

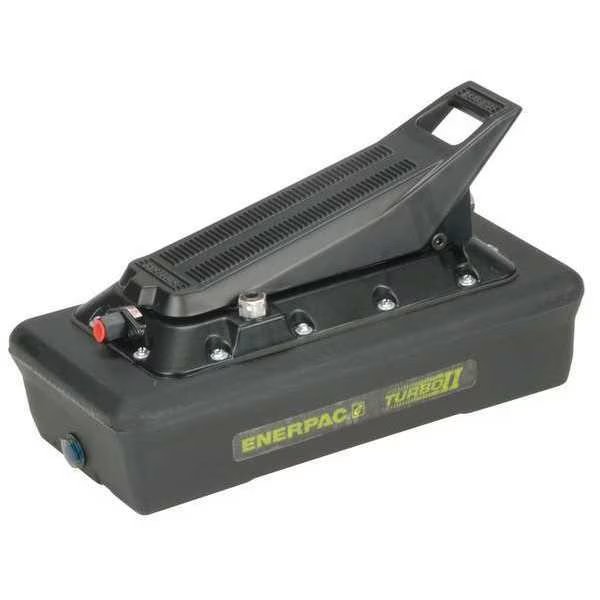

PATG1105N, Turbo II Air Hydraulic Pump, Hand/Foot Operated 3/3 Treadle Valve, 230 in3 Usable Oil, ENERPAC, Mfr# PATG1105N
$1328,00
-$77.67 / ea
with subscription
Free shipping will be applied on orders over $50
Hydraulic Pump, Reservoir Capacity 230 cu in, Air Intake Pressure - Maximum 125 psi, Air Intake Connection Size 1/4 in, Operating Pressure - Maximum 10,000 psi, Displacement @ 10,000 PSI 10 cu in/min, Sound Level - Maximum 76 dBA, Control Valve Type 3-Position, 3-Way, Actuation Type Foot, Hand, Air Consumption - Maximum 12 scfm, Air Intake Connection Type FNPT, Control Valve Function Advance, Hold, Retract, Displacement @ No Load 60 cu in/min
9999 in stock
