| Ports (Inlet) | 1 in Tube |
| Ports (Outlet) | 1/2 in NPTF |
| Input RPM | 3,600 |
| Transmission | Automatic 2 Speed |
| Mounting Flange | 4F17 |
| Max. PSI 1st Stage | 600 |
| Drive Shaft (In.) | 1/2 in |
| GPM @ 2000 PSI | 2.72 |
| Unloading Valve Preset Pressure (psi) | 450 |
| Displacement @ Low Pressure (cubic inches/rev.) | 0.517 |
| GPM @ 1000 PSI | 2.8 |
| Shaft Dia. (In.) | 1/2 in |
| Shaft Length (In.) | 1 1/2 in |
| Drive | Direct |
| Rotation | CW |

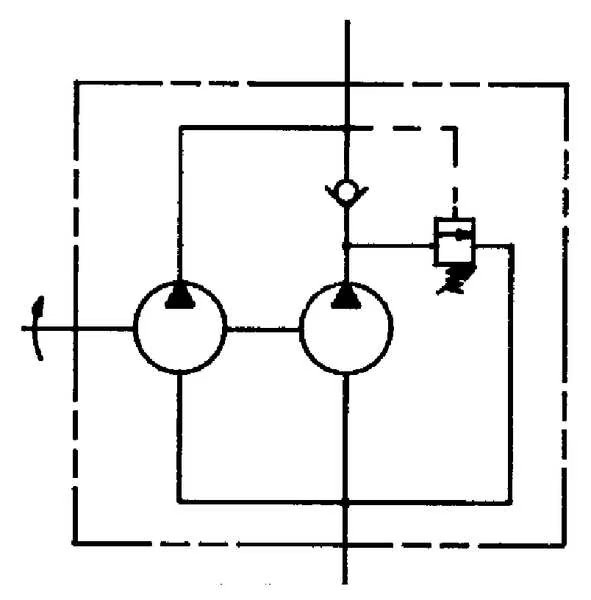

| Type | Two Stage |
| Item | Hydraulic Gear Pump |
| Max. PSI 2nd Stage | 3,000 |
| Application | For Presses, Log Splitters, Clamping Units and Compactors |
| HP Required | 5 hp |
| GPM @ 250 PSI | 10.94 |
| Nominal Flow (GPM) | 11.0 |
| Displacement @ High Pressure (cubic inches/rev.) | 0.194 |
| Pressure 2nd Stage - Maximum | 3,000 psi |
| Media Intake Connection Type | Tube |
| Displacement @ High Pressure per Revolution | 0.194 cu in/rev |
| Shaft Length | 1 1/2 in |
| Displacement @ Low Pressure per Revolution | 0.517 cu in/rev |
| Motor Speed - Maximum | 3,600 RPM |
| Shaft Outer Diameter | 1/2 in |
| Drive Type | Direct |
| Flow Rate @ 250 psi | 10.94 gpm |
| Required Horsepower | 5 hp |
| Flow Rate @ 2000 psi | 2.72 gpm |
| Discharge Connection Type | FNPT |
| Discharge Connection Size | 1/2 in |
| Media Intake Connection Size | 1 in |
| Control Valve Pressure Relief - Maximum | 450 psi |
| Pressure 1st Stage - Maximum | 600 psi |
| Flow Rate @ 1000 psi | 2.8 gpm |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
Pump, Gear, 11 GPM, CONCENTRIC INTERNATIONAL, Mfr# 1002508
$237,99
-$7.14 / ea
with subscription
Free shipping will be applied on orders over $50
Hydraulic Gear Pump, Media Intake Connection Size 1 in, Media Intake Connection Type Tube, Discharge Connection Size 1/2 in, Discharge Connection Type FNPT, Displacement @ High Pressure per Revolution 0.194 cu in/rev, Displacement @ Low Pressure per Revolution 0.517 cu in/rev, Motor Speed - Maximum 3,600 RPM, Rotation CW, Mounting Type 4F17, Control Valve Pressure Relief - Maximum 450 psi, Drive Type Direct, Flow Rate @ 1000 psi 2.8 gpm, Flow Rate @ 2000 psi 2.72 gpm
9999 in stock
Must order in multiples of 1
Subtotal:
$237.99
