| Property | Value |
|---|---|
| Item | Rotary Vane Pump |
| Inlet/Outlet NPTF (In.) | 3/8 in |
| GPH | 140 gph |
| Mounting | Carbonator Clamp Style |
| By-Pass | Yes |
| HP @ 200 PSI | 1/2 hp |
| HP @ 250 PSI | 3/4 hp |
| External Relief | Not Required |
| Max. Pressure (PSI) | 250 psi |
| HP @ 150 PSI | 1/2 hp |
| HP @ 50 PSI | 1/4 hp |
| GPH of Water @ 100 PSI | 141 gph |
| HP @ 100 PSI | 1/3 hp |
| Max. Temp. (F) | 158 Degrees F |
| GPH of Water @ 200 PSI | 137 gph |
| Shaft | 303 Stainless Steel |
| GPH of Water @ 250 PSI | 94 gph |
| Min. Flow Rate (GPH) | 135 gph |
| Body Material | Stainless Steel |
| GPH of Water @ 50 PSI | 143 gph |
| Built-In | Relief Valve |
| Relief Pressure Max. (PSI) | 250 psi |
| GPH of Water @ 150 PSI | 139 gph |
| Max. Flow (GPH) | 154 gph |
| Relief Valve PSI Setting | 200 psi |
| Shaft Material | 303 Stainless Steel |
| Vane Material | Carbon |
| Includes | Relief Valve |
| Overall Length | 3.3 in |
| Overall Height | 2.9 in |
| Overall Width | 3.9 in |
| Standards | NSF, RoHS |
| Compatible Motor Frame | 48Y NEMA |
| Media Intake Connection Size | 3/8 in |
| Shaft Outer Diameter | 1/2 in |
| Discharge Connection Type | NPT |
| Flow Rate - Minimum | 135 gph |
| Flow Rate @ 250 psi | 94 gph |
| Operating Temperature - Minimum | -4 Degrees F |
| Flow Rate - Maximum | 140 gph |
| Discharge Connection Size | 3/8 in |
| For Media Type | No |
| Flow Rate @ 50 psi | 143 gph |
| Seal Material | Carbon, Ceramic |
| Flow Rate @ 100 psi | 141 gph |
| NSF 169 Listed | Yes |
| Media Intake Connection Type | FNPT |
| Operating Temperature - Maximum | 160 Degrees F |
| Flow Rate @ 200 psi | 137 gph |
| Filter Rating - Maximum | Not Applicable |
| Flow Rate @ 150 psi | 139 gph |
| Viscosity - Maximum | 100 cps |
| Includes Filter | No |
| Feet of Head - Maximum | 6 ft of head |
| Operating Pressure - Maximum | 150 psi |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

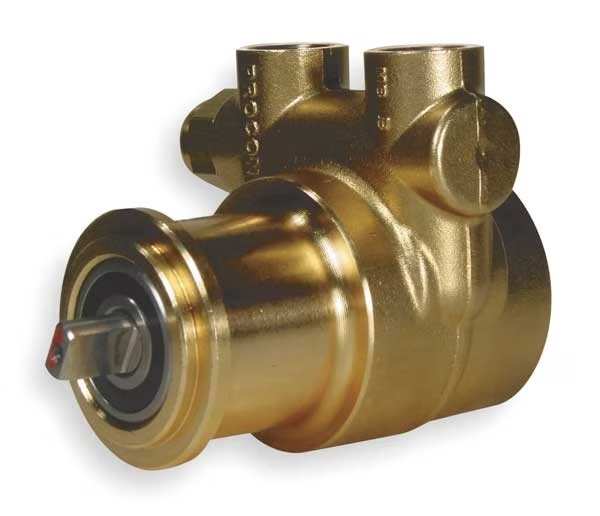

Pump, Rotary Vane, SS, Procon, Mfr#: 113A140F31BA 250
$140.99
Free shipping will be applied on orders over $50
Rotary Vane Pump, Flow Rate - Maximum 140 gph, Feet of Head - Maximum 6 ft of head, Mounting Type Carbonator Clamp, Compatible Motor Frame 48Y NEMA, Media Intake Connection Size 3/8 in, Media Intake Connection Type FNPT, Discharge Connection Size 3/8 in, Discharge Connection Type NPT, Vane Material Carbon, Includes Filter No, Filter Rating - Maximum Not Applicable, For Media Type No, NSF 169 Listed Yes, Operating Pressure - Maximum 150 psi, Operating Temperature - Minimum -4 Degrees F
9999 in stock
