| Property | Value |
|---|---|
| Item | Control Station |
| Contact Form | 1NO/1NC |
| Number of Gangs | 1 |
| Legend | Start/Stop |
| Type of Operator | Push Button/Push Button |
| Number of Pilot Lights | 0 |
| Number of Operators | 2 |
| NEMA Rating | 1 |
| Series | 9001 |
| Hub Style | Feed-Thru |
| Size | 30 mm |
| Contact Rating | 5A @ 600V AC/24V DC |
| Standards | CE, CSA LR25490 Class 3211 03, UL E42259 CCN NKCR |
| For Use With | indoor |
| Action | Momentary/Momentary |
| Hub | 1/2 in to 3/4 in NPT |
| Mechanical Interlock | No |
| Depth | 2.34 in |
| Height | 3.69 in |
| Enclosure Material | Plastic |
| Width | 2.06 in |
| Mounting | Wall |
| IP Rating | IP20 |
| Green Environmental Attribute | RoHS 2011/65/EU Compliant |
| Number of Speeds | 1 |
| Enclosure Color | Gray |
| Operator Color | Black, Red |
| Terminal Connection | screw clamp terminal |
| Mounting Style | Surface |
| DC Contact Rating | 0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V |
| Operator Configuration | (2) Push Buttons |
| Product Type | Control Station |
| Hazardous Location Specification | Not Rated |
| Operating Temperature - Minimum | -13 Degrees F |
| Manufacturer Warranty Length | 18 mo |
| AC Contact Rating | 0.6 A @ 600 V, 0.75 A @ 480 V, 1.5 A @ 240 V, 3.75 A @ 120 V |
| Panel Cutout Diameter | Not Applicable |
| Mounting Orientation | Not Applicable |
| Maintained Action Release | Not Applicable |
| Selector Switch Number of Positions | Not Applicable |
| Includes Mechanical Interlock | No Mechanical Interlock Included. |
| NEMA Enclosure Rating | 1 |
| Overall Height | 5 in |
| Pilot Light Color | Not Applicable |
| Overall Depth | 2.34 in |
| Hub Size - Maximum | 3/4 in |
| Operating Temperature - Maximum | 158 Degrees F |
| Overall Width | 2.06 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

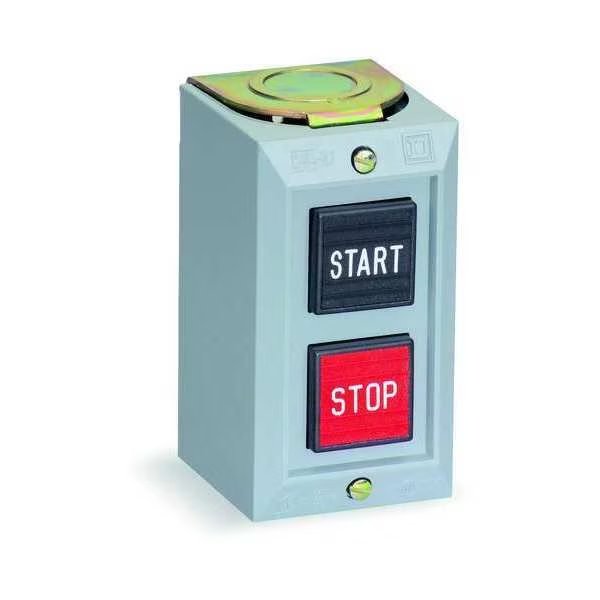

Push Buttn Cntrl Station, Start/Stop, 30mm, Square D, Mfr#: 9001BG201
$78.99
Free shipping will be applied on orders over $50
Control Station, Number of Operators 2, Number of Pilot Lights 0, Size 30 mm, Legend Start/Stop, Type of Operator Push Button/Push Button, Action Momentary/Momentary, Operator Color Black, Red, Contact Form 1NO/1NC, Mechanical Interlock No, NEMA Rating 1, Contact Rating 5A @ 600V AC/24V DC, IP Rating IP20, Mounting Wall, Hub 1/2 in to 3/4 in NPT, Height 3.69 in, Width 2.06 in, Depth 2.34 in, Enclosure Material Plastic, Enclosure Color Gray
9999 in stock
