| Property | Value |
|---|---|
| Height | 7.36 mm [ .29 in ] |
| Length | 22.35 mm [ .88 in ] |
| Switch Type | DIP |
| Product Type | Switch |
| Contact Base Material | Copper Alloy |
| Centerline | 2.54 mm [ .1 in ] |
| Solder Tail Contact Plating | Tin |
| Voltage Rating (VDC) | 50 |
| Number of Switches | 8 |
| UL Flammability Rating | UL 94V-0 |
| Mounting Type | Through Hole |
| Operating Temperature Range (°C) | -55 to 105 |
| Housing Material | Polyester GF |
| Low Profile | Yes |
| Configuration (Pole-Throw) | Single Pole - Single Throw |
| Mounting Angle | Vertical |
| Housing Color | Black |
| Seal Type | Strippable |
| Number of Positions | 8 |
| Auto-Insertable | No |
| Contact Mating Area Plating Material | Gold |
| Contact Mating Area Plating Thickness (µin) | 30 |
| Contact Current Rating (A) | 1.5 |
| Actuator Style | Piano (Side Actuated) |
| Termination Post Length | 3.56 mm [ .14 in ] |
| Sealed | Yes |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

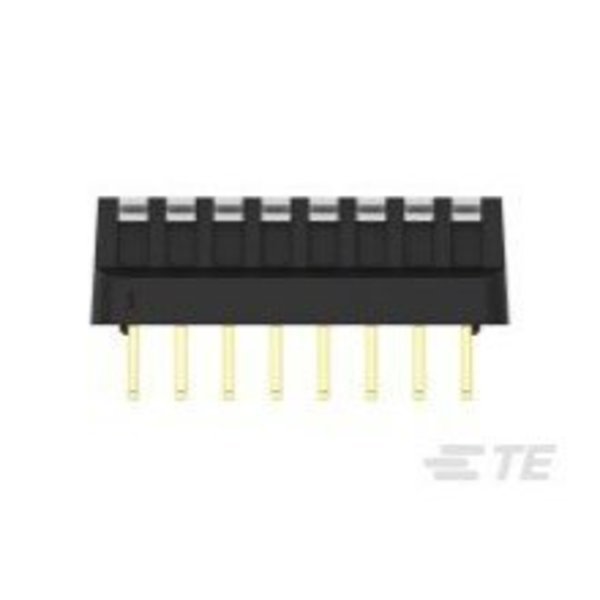

RIGHT ANGLE DIP SW 8 P SEALED, Te Connectivity, Mfr#: 5435802-9
$2.79
Free shipping will be applied on orders over $50
9999 in stock
Must order in multiples of 28
Subtotal:
$78.12
