| Property | Value |
|---|---|
| Item | Flow Gauge Regulator |
| Inlet Connection | CGA 320 |
| Outlet Connection | 5/8 |
| Standards | UL 592H |
| Body Material | Brass |
| Duty Rating | Heavy Duty |
| Diaphragm Material | Neoprene |
| Application | Low Pressure |
| Features | Fine Mesh Filter Screen Between Inlet and Body, Stem Type Seat, Pressure Relief Device for Low Pressure Flowgauge Protection Only, Dampened Seat Assembly |
| Overall Height | 5.63 in |
| Compatible Gas Type | Carbon Dioxide |
| Maximum Inlet Pressure | 3,000 psig |
| Outlet Connection Gender | Female |
| Gauge Diameter | 2 in |
| Inlet Connection Size | 0.965 |
| Outlet Thread Direction | Right Hand |
| Overall Depth | 3.75 in |
| Inlet Connection Type | NGO |
| Number of Stages | Single Stage |
| CGA Number | CGA 320 |
| Outlet Connection Type | UNF |
| Inlet Connection Gender | Male |
| Inlet Thread Direction | Right Hand |
| Overall Width | 7 in |
| Outlet Connection Size | 5/8 |
| Product Type | Flow Gauge Regulator |
| Carbon Dioxide Flow Rate (Maximum) | 40 scfh |
| Maximum Flow Rate | 40 scfh (Carbon Dioxide) |
| Flow Rate (Maximum) | 40 scfh (Carbon Dioxide) |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

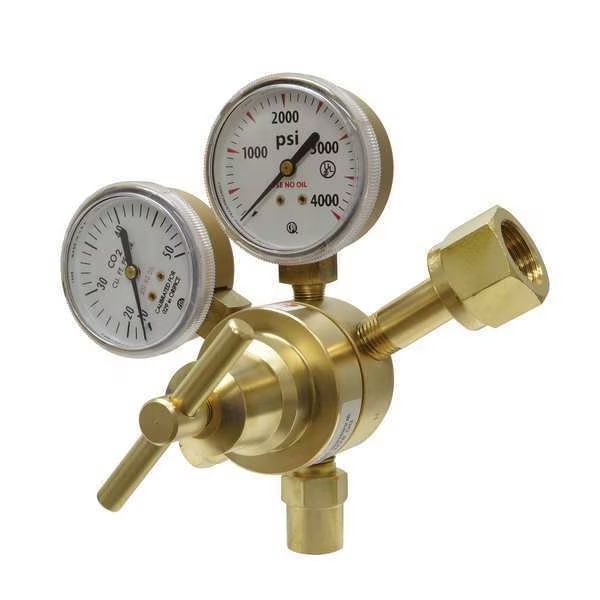

Regulator, Uniweld, Mfr#: MRFG13
$122.99
Free shipping will be applied on orders over $50
Regulator/Flowgauge CO2 10-14 SCFH, Compatible Gas Type Carbon Dioxide, Mounting Type Cylinder, Inlet Connection Gender Male, Inlet Thread Direction Right Hand, Inlet Connection Size 0.965 In.-14, Inlet Connection Type NGO, Maximum Inlet Pressure 3,000 psig, Outlet Connection Gender Female, Outlet Connection Size 5/8 In.-18, Outlet Connection Type UNF, Carbon Dioxide Flow Rate (Maximum) 40 scfh, Number of Stages Single Stage, Product Type Flow Gauge Regulator, Application Low Pressure
