| Property | Value |
|---|---|
| Item | Time Delay Relay |
| Type | Delay on Make |
| Control Volts | 18 to 240 |
| Contact Rating (Amps) | 1.5 A |
| Voltage | 18 To 240 |
| Hz | 50/60 |
| Delay | Extended Adjustable Time Range-in Knob-Adjustable or Fixed Time |
| Time Delay | Adj. 1.8 to 600 Sec. |
| Temp. Rating (F) | -40 to 167 |
| Monitors | High/Low Voltage, Voltage Unbalance |
| Depth | 2 in |
| Height | 2 in |

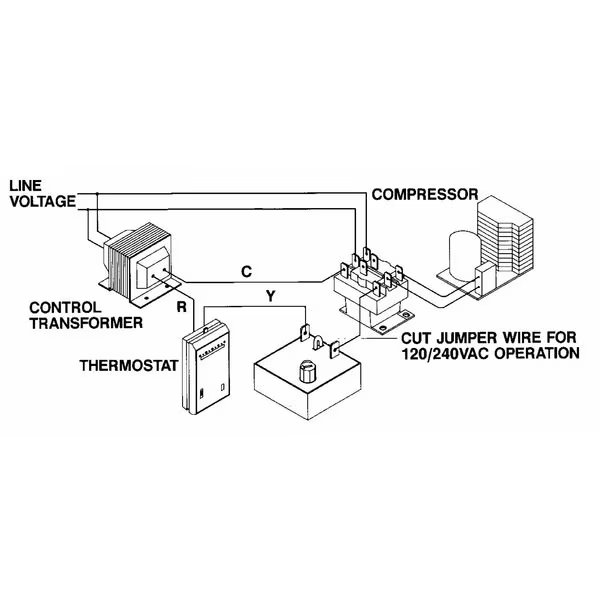

| Application | Anti Short Cycle Protection For Anticipator Type Thermostats in HVAC and Refrigeration |
| For Use With | Appliance, Electrical, HVAC/R, Pool, Spa |
| Agency Compliance | IEEE587 |
| Includes | 1/4 in Quick Connect, Single Hole Mounting |
| Input Voltage | 18 to 240V AC |
| Standards | C-UL-US, cCSAus |
| Frequency | 50/60 Hz |
| Features | Universal Voltage Operation, Works with Anticipator-Type Thermostats |
| Delay Function | On Delay |
| Body Height | 1 1/4 in |
| Number of Pins | 2 |
| Body Depth | 2 in |
| Maximum Operating Temperature | 167 Degrees F |
| Coil Voltage | 18 to 240V AC |
| Mounting Style | Surface |
| Base Shape | Square |
| Contact Rating (AC) | 1.5 A |
| Minimum Operating Temperature | -40 Degrees F |
| Minimum Time Setting | 1.5 sec |
| Adjustment Method | Knob |
| Operating Temperature - Maximum | 167 Degrees F |
| Body Width | 2 in |
| Operating Temperature - Minimum | -40 Degrees F |
| Maximum Time Setting | 600 sec |
| Reset Method | Time-Delay Reset |
| Weight | 0.1 lb |
| Relay Operation | Delay On Make Relay |
| Overall Depth | 2 in |
| Current Rating | 1.5 A |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
Time Delay, Delay on Make, 1.5 Contact Rating (Amps), 18 To 240 Volts, Icm, Mfr#: ICM102B
$20.95
Free shipping will be applied on orders over $50
Time Delay Relay, Adjustment Method Knob, Base Shape Square, Body Depth 2 in, Body Height 1 1/4 in, Body Width 2 in, Coil Voltage 18 to 240V AC, Contact Rating (AC) 1.5 A, Current Rating 1.5 A, Delay Function On Delay, Features Universal Voltage Operation, Works with Anticipator-Type Thermostats, For Use With Appliance, Electrical, HVAC/R, Pool, Spa, Frequency 50/60 Hz, Includes 1/4 in Quick Connect, Single Hole Mounting, Input Voltage 18 to 240V AC, Maximum Time Setting 600 sec
9999 in stock
Subtotal:
$20.95
