| Property | Value |
|---|---|
| Item | Repair Clamp |
| Type | Redi-Clamp |
| Gasket Material | Nitrile Rubber |
| Pipe Size | 3 in |
| Length | 6 in |
| Material | Stainless Steel |
| Fits Outside Dia. | 3.50 in |
| Max. Pressure (PSI) | 150 |
| Standards | NSF 61 |
| Temp. Range | -20F to 180F |
| Bolt Material | Steel |
| Bolt Size | 7/16 in x 4 in |
| Number of Bolts | 2 |
| Outlet Connection | No |
| Maximum Operating Pressure | 150 psi |
| For Maximum Copper Tube Size | 3 in |
| Features | Drop-In Bolts, Punctures and Splits in Pipe, Lugs are Epoxy Coated for Corrosion Resistance, Provides 360 Degrees Coverage |
| Lug Material | Iron |
| Clamp Material | 304 Stainless Steel |
| Maximum Operating Temperature | 180 Degrees F |
| For Minimum Copper Tube Size | 2 in |
| Outlet Connection Type | Not Applicable |
| Bolt Diameter | 7/16 in |
| Gasket Coverage | Partial Coverage |
| For Minimum Outside Diameter | 3 1/2 in |
| Maximum Vacuum Pressure | 10 psi |
| For Maximum Outside Diameter | 3 1/2 in |
| Minimum Operating Temperature | -20 Degrees F |
| Overall Length | 6 in |
| Bolt Length | 4 in |
| Clamp Material Grade | 304 |
| For Pipe Size | 3 in |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

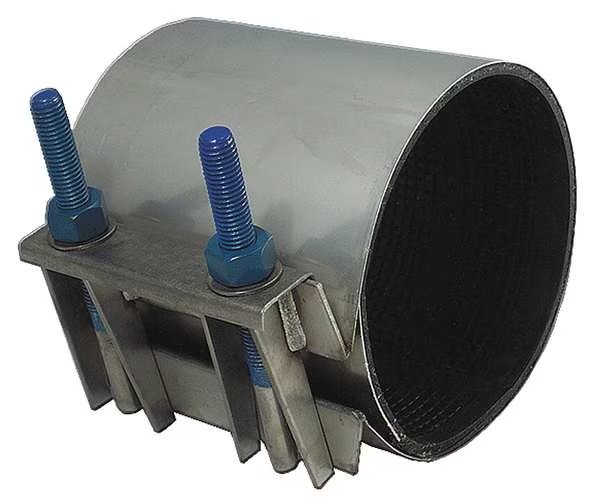

Repair Clamp, Pipe Size 3 In, 6 In L, Smith-Blair, Mfr#: 24500035006000
$57.45
Free shipping will be applied on orders over $50
Repair Clamp, Bolt Material Steel, Clamp Material Stainless Steel, Clamp Material Grade 304, For Maximum Copper Tube Size 3 in, For Maximum Outside Diameter 3 1/2 in, For Minimum Copper Tube Size 2 in, For Minimum Outside Diameter 3 1/2 in, For Pipe Size 3 in, Gasket Coverage Partial Coverage, Gasket Material Nitrile Rubber, Maximum Operating Pressure 150 psi, Maximum Vacuum Pressure 10 psi, Number of Bolts 2, Outlet Connection Type Not Applicable, Overall Length 6 in
9999 in stock
