| Property | Value |
|---|---|
| Item | Rigid Shaft Coupling |
| Shaft Locking Type - Couplings | 2 Piece Clamp |
| System of Measurement | Metric |
| Bore Dia. | 25 mm |
| Material - Couplings | Stainless Steel |

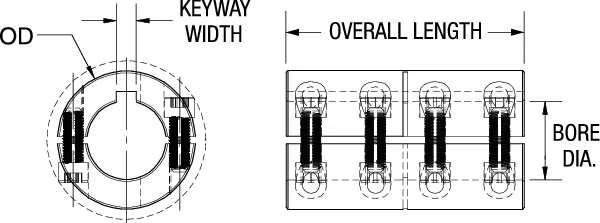

| Outside Dia. | 45 mm |
| Overall Length | 75 mm |
| With Keyway / Without Keyway | With Keyway |
| Finish | Bright |
| Max. Torque (In.-Lbs.) | 2900 |
| Material | Stainless Steel |
| Machined From | Bar Stock |
| Keyway Width | 8 mm |
| Keyway Width (mm) | 8 |
| Type | Two Piece Clamp Type, with Keyway |
| Clearance Dia. | 51.5 mm |
| Clearance Dia. (mm) | 51.50 |
| Screw Size (mm) | M6 |
| Screw Size | M6 |
| Provides | Extra Holding Power for Higher Load Applications without Marring Shafts |
| Application | For Applications where Alignment is Critical, Particularly when no Backlash is Desired and Flexibility is not Required, Useful when Timing, Joining and/or Aligning Shafts at Lower Speeds and Torque |
| Design | Four Vibration Resistant Socket Capscrews |
| Item - Rigid Shaft Couplings | Rigid Shaft Coupling |
| Max. Torque | 2,900 in-lb |
| Standards | Conflict Minerals Compliant, DIN 912 12.9 Screws, REACH Compliant, RoHS3 Compliant |
| Bore Tolerance | +0.050 mm / +0.012 mm |
| Screw Material | Stainless Steel |
| Maximum Bore Diameter | 20 mm |
| Coupling Construction | Two-Piece |
| Shaft Locking Type | Clamp On |
| Keyway Depth 2 | 3.5 mm |
| Number of Locking Screws | 8 |
| Screw Material Grade | 18-8 300 Series |
| Minimum Bore Diameter | 25 mm |
| Zero Backlash | Yes |
| Coupling Material | Stainless Steel |
| Maximum Operating Temperature | 176 Degrees C |

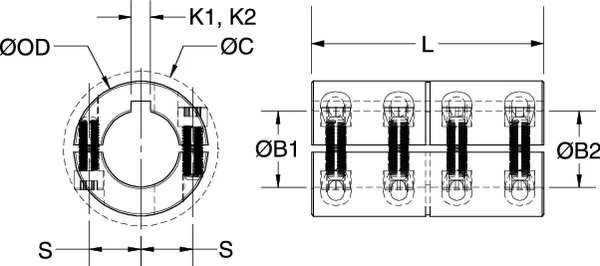

| Bore Diameter 1 | 25 mm |
| Included Screws | (8) Clamp Screws |
| Bore Diameter 2 | 25 mm |
| Coupling Outside Diameter | 45 mm |
| Screw Material Finish | Bright |
| Different Bore Sizes | No |
| Screw Location from Center | 16.9 mm |
| Bore Type | Round Keyed |
| Maximum Torque | 120 N-m |
| Recommended Gap | 2.38 mm |
| Clearance Diameter | 51.5 mm |
| Maximum Speed | 4,000 RPM |
| Resistance Properties | Corrosion Resistant |
| Keyway Depth 1 | 3.5 mm |
| Keyway Width 2 | 8 mm |
| Features | Precision Honed Bores, Vibration-Resistant Screws |
| Screw Thread Size | M6 |
| Coupling Material Grade | 303 |
| Coupling Material Finish | Bright |
| Shaft Tolerance | +0.000 mm / -0.013 mm |
| Minimum Operating Temperature | -40 Degrees C |
| Keyway Width 1 | 8 mm |
| Fastener Tightening Torque | 9.6 N-m |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

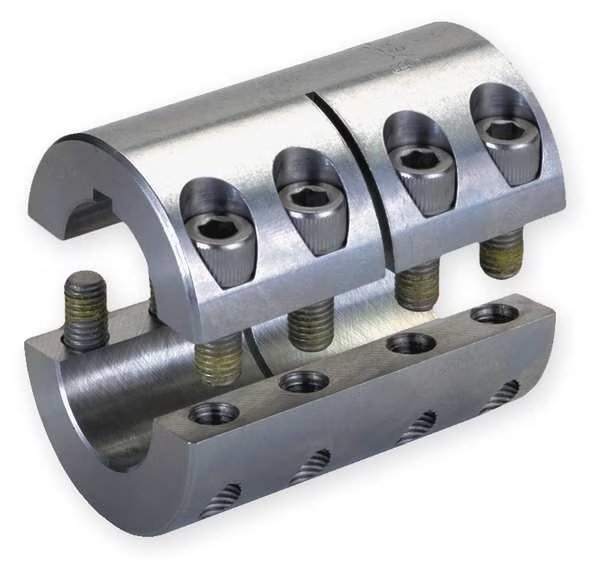

Coupling, Two Piece, Bore Dia 25 mm, Ruland, Mfr#: MSPC-25-25-SS
$197.99
Free shipping will be applied on orders over $50
Rigid Shaft Coupling, Bore Diameter 1 25 mm, Bore Diameter 2 25 mm, Bore Type Round Keyed, Clearance Diameter 51.5 mm, Coupling Construction Two-Piece, Coupling Material Stainless Steel, Coupling Outside Diameter 45 mm, Different Bore Sizes No, Keyway Depth 1 3.5 mm, Keyway Depth 2 3.5 mm, Minimum Bore Diameter 25 mm, Keyway Width 1 8 mm, Keyway Width 2 8 mm, Maximum Bore Diameter 20 mm, Maximum Speed 4,000 RPM, Maximum Torque 120 N-m, Overall Length 75 mm, Shaft Locking Type Clamp On
9999 in stock
