Wire Range | 12 to 10 AWG |
Insulation Type | Heat Shrink |
Stud Size | 1/2 in |
Insulation Color | Yellow |
Connection Material | Copper |
Seam | Brazed |
Connection Type | Crimp |
Overall Length | 2 in |
Max. Temp. | 221 Degrees F |
Tongue Width - Wire Connector | 0.67 in |
Terminal Connection | Crimp |
Item | Ring Terminal |
Max. Voltage | 600 V |
Tongue Width | 0.67 in |
Seam Style | Brazed |
For Wire Size | 10 AWG, 12 AWG |
Ring Width Ranges | 0.51 - 0.75 inches |
Terminal Shape | Ring Terminal |
Termination Style | Crimp |
Minimum Wire Size | 12 AWG |
Insulation Coverage | Full Coverage |
Contact Material | Nickel Alloy |
Maximum Voltage | 600 V |
Insulation Material | Nylon |
For Wire Sizes | 12 AWG to 10 AWG |
Maximum Wire Size | 10 AWG |
Minimum Operating Temperature | 221 Degrees F |
Maximum Operating Temperature | 221 Degrees F |
Insulation | Nylon |
Termination | Crimp Termination with Heat Shrink |
Country of Origin (subject to change) | United States |
Package Quantity | 10 |

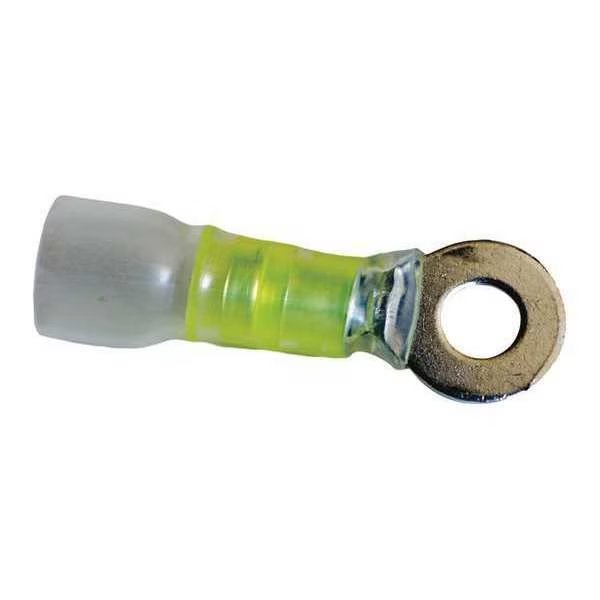

12-10 AWG Heat-Shrink Ring Terminal 1/2" Stud PK10, VELVAC, Mfr# 30419
$8,99
Free shipping will be applied on orders over $50
Ring Terminal, Insulation Color Yellow, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.67 in, Contact Material Nickel Alloy, Insulation Type Heat Shrink, Minimum Operating Temperature 221 Degrees F, Overall Length 2 in, Package Quantity 10
9999 in stock
Must order in multiples of 1
Subtotal:
$8.99
