| Property | Value |
|---|---|
| Item | Rocker Switch |
| Contact Form | DPST |
| Number of Connections | 4 |
| Switch Function | Momentary On/Off |
| Terminals | Screw |
| Mounting Hole | 0.830 in x 1.450 in |
| AC Contact Rating | 15 A @ 277 V, 20 A @ 125 V |
| DC Contact Rating | Not Applicable |
| HP | 2 hp |
| Switch Color | Red |
| Operating Temp. Range | 32 Degrees to 104 Degrees F |
| Standards | cRUus |
| Body Color | Black |
| Shop By | Closeouts |
| Product Type | Rocker Switch |
| IP Rating | Not Applicable |
| Lamp Module Type | No Lamp Module Included |
| Overall Depth | 0.96 in |
| Lamp Type | No Lamp Module Included |
| Manufacturer Warranty Length | 2 yr |
| NEMA Enclosure Rating | Not Applicable |
| Mounting Hole Length | 1.48 in |
| Operating Temperature - Maximum | 104 Degrees F |
| Overall Width | 1.7 in |
| Number of Positions | 2 |
| Horsepower | 2 hp |
| Features | Not Applicable |
| Includes Lamp Module | No Lamp Module Included |
| Lamp Voltage - Maximum | Not Applicable |
| Includes Lens | No Lens Included |
| Lens Color | Not Applicable |
| Terminal Connection Type | Screw Terminals |
| Mounting Hole Width | 0.83 in |
| Operating Temperature - Minimum | 32 Degrees F |
| Resistance Properties | Not Applicable |
| Switch Function Configuration | Momentary On/Off |
| Overall Height | 0.33 in |
| Series | HY60 |
| Operator Illumination | Non-Illuminated |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

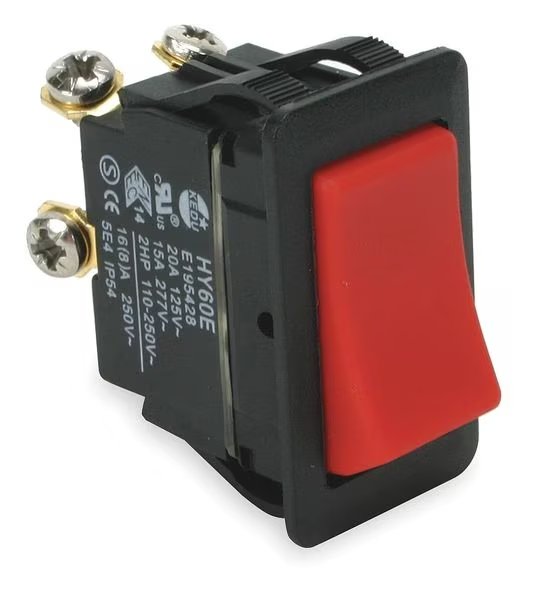

Rocker Switch, DPST, 4 Connections, Power First, Mfr#: 2LNF5
$3.35
Free shipping will be applied on orders over $50
Rocker Switch, Contact Form DPST, Number of Connections 4, Switch Function Momentary On/Off, Terminals Screw, Mounting Hole 0.830 in x 1.450 in, AC Contact Rating 15 A @ 277 V, 20 A @ 125 V, DC Contact Rating Not Applicable, HP 2 hp, Body Color Black, Switch Color Red, Operating Temp. Range 32 Degrees to 104 Degrees F, Standards cRUus, IP Rating Not Applicable
9999 in stock
