| Property | Value |
|---|---|
| Promotion Restriction | Not eligible for promotion |
| Item | 4-1/2 |
| Crystal Insert Size | 95mm dia |
| Viewing Aperture Size | 89mm dia |
| Viewing Aperture Area | 9.64 sq in |
| Components | Anodized Aluminum Frame and Cover |
| Window Thickness | 0.07 in |
| Includes | Installation Instructions |
| Optic Maximum Temperature | 2,474 Degrees F |
| Manufacturers Warranty Length | Limited Lifetime |
| Use | Indoor, Outdoor |
| IP Rating | IP69 |
| Voltage Range | Any |
| Body Maximum Temperature | 500 Degrees F |
| Gasket Maximum Temperature | 170 Degrees F |
| NEMA Rating | 12, 4 |
| Body Material | Aluminum |
| Special Features | Hinged Cover Stays Attached, No Special Tool to Secure Cover, Window Labeling/ID Inside the Cover, (3) Step Installation, No Screw Holes to Drill |
| IR Window IP Rating | IP67 |
| IR Window NEMA Rating | NEMA 12, NEMA 4 |
| Manufacturer Warranty Length | Limited Lifetime Manufacturers Warranty |
| Frame Material | Aluminum |
| Crystal Insert Diameter | 3.74 in |
| Viewing Aperture Width | Not Applicable |
| Maximum Operating Temperature Degrees F | 500 Degrees F |
| Minimum Operating Temperature Degrees F | -40 Degrees F |
| Viewing Aperture Diameter | 3.5 in |
| Cover Material | Aluminum |
| Crystal Insert Width | Not Applicable |
| For Outdoor Use | Yes |
| Viewing Aperture Height | Not Applicable |
| Lens Material | Crystal |
| Crystal Insert Height | Not Applicable |
| Country of Origin (subject to change) | Estonia |
| Package Quantity | 1 |

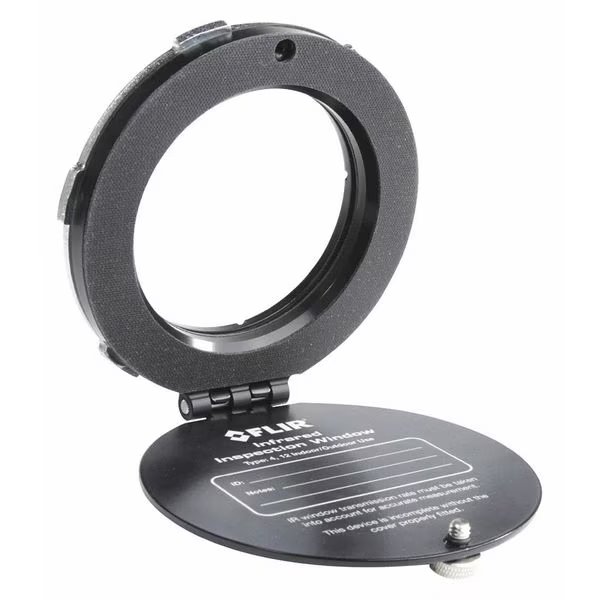

Round Infrared Window, 95mm dia, Type 3/12, Flir, Mfr#: IRW-4C
$569.99
Free shipping will be applied on orders over $50
4-1/2 In. Round Infrared Window, Maximum Operating Temperature Degrees F 500 Degrees F, Minimum Operating Temperature Degrees F -40 Degrees F, Optic Maximum Temperature 2,474 Degrees F, Viewing Aperture Area 9.64 sq in, Viewing Aperture Diameter 3.5 in, Viewing Aperture Height Not Applicable, Viewing Aperture Width Not Applicable, Window Thickness 0.07 in, Body Maximum Temperature 500 Degrees F, Includes Installation Instructions, IP Rating IP69, Gasket Maximum Temperature 170 Degrees F
9999 in stock
