Item - Relay

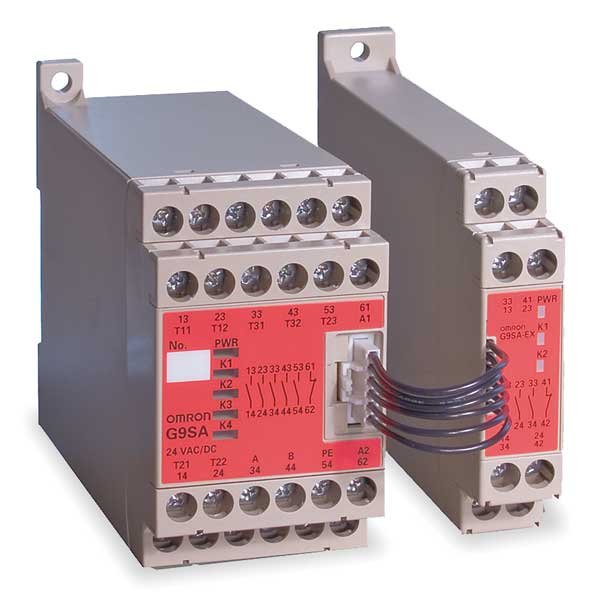

Safety Relay Extension Module
Input or Control Voltage
24 V AC/DC
AC Contact Rating - Relay
5A @ 250 V
DC Contact Rating - Relay
5A @ 30 V
Output Switch Configuration - Relay
(1) SPST-NC Aux. Relay, (3) SPST-NO Instantaneous
Input Power Consumption (Burden)
2 VA
Number of Inputs - Relay
2
Use With - Relay
All G9SA Series Safety Relays
Delay Time - Relay
No Delay
Input or Control Voltage Range
24VAC/DC
Number of Inputs - Safety Monitoring Relay
2
Electrical Connection - Safety Monitoring Relay
Screw Terminal
Use With - Safety Monitoring Relay
All G9SA Series Safety Relays
Item
Safety Relay Extension Module
Standards
CSA Certified, UL Listed
Output Switch Configuration - Safety Monitoring Relay
(3) SPST-NO Instantaneous, (1) SPST-NC Aux. Relay
Response Time - Safety Monitoring Relay
10 msec
Environmental Protection
Finger-Safe
Delay Time - Safety Monitoring Relay
No Delay
Overall Height - Relay
3 in
For Use With
G9SA Series Safety Relays
Contact Configuration
3NO/1NC Aux.
Electrical Connection - Relay
Screw Terminal
Response Time - Relay
10 msec
Mounting Style
DIN Rail u0026 Surface
Resistance Properties
Vibration-Resistant
Coil Resistance
Not Applicable
Contact Rating (AC)
5 A @ 250V
Electrical Operating Durability
100,000
Maximum Operating Temperature
131 Degrees F
Contact Rating (DC)
5 A @ 30V
Safety Reliability Data
EN574 (-TH301), EN60204-1, EN954-1
Status Indicator
LED Indicator
Output Switch Configuration
(1) NC Aux, (1) NO Main
Electrical Connection
Screw Terminal
Minimum Operating Temperature
-13 Degrees F
Mechanical Operating Durability
5,000,000
Number of Input Channels
2
Country of Origin (subject to change)
China
