| Property | Value |
|---|---|
| Item | Signal Generator |
| Type | Function/Arbitrary Waveform |
| Sine Wave Range | 1 uHz to 30 MHz |
| Square Wave Range | 1 uHz to 30 MHz |
| Other Waveform Range | Arbitrary 1 uHz to 12.5 MHz, Pulse 1 uHz - 12 MHz, Triangle Ramp 1 uHz to 500 kHz |
| Sine Wave Distortion | DC - 10 MHz Less Than -60 dBc, 10 MHz to 30 MHz Less Than -50 dBc |
| Sq. Wave Rise/Fall Time (nS) | Less Than 12 ns (10%-90%) At Full Amplitude Into 50 ohm |
| Manufacturers Warranty Length | 3 yr |
| Sweep | Linear and Logarithmic, Up or Down |
| Other Types of Modulation | AM, ASK, DSB-AM, FM, FSK, PM, PSK, PWM |
| Includes | Power Cord, USB Type A to Type B Cable |
| FM Modulation | Internal/External |
| AM Modulation | Internal/External |
| Sweep Rate | 1 msec to 500 sec |
| Square Wave Range (MHz) | 1 uHz to 30 MHz |
| Sweep Type | Continuous, Gate or Burst, Triggered |
| Frequency Dial Accuracy (%) | 0-100 |
| Sine/Square Wave Accuracy | +/-25 PPM (1 yr) |
| Power Source | AC Line Input (115/230 V AC, 50/60 Hz) |
| Interface | GPIB (Optional), LAN, USB Host Port, USBTMC (Standard) |
| Output Attenuation | +/-0.3 dB (DC to 10 MHz), +/-0.5 dB ( Greater Than10 MHz to Max.) |
| Sweep Range | Waveform Range Dependent |
| Impedance (Ohms) | 50 ohm |
| Output Amplitude | 2 mVpp to 10 Vpp into 50 ohm (4 mVpp to 20 Vpp into Open Circuit) Less Than or Equal To 10 MHz, 2 mVpp to 5 Vpp into 50 ohm (4 mVpp to 10 Vpp into Open Circuit) Greater Than10 MHz |
| Sine Wave Range (MHz) | 1 uHz to 30 MHz |
| Display | 4.5 in Color LCD |
| Product Type | Function/Arbitrary Waveform Generator |
| Sine Wave Frequency - Maximum | 30 MHz |
| Sweep Time - Maximum | 500 sec |
| Number of Channels | 2 |
| Square Wave Frequency - Maximum | 30 MHz |
| Sine Wave Frequency - Minimum | 1 uHz |
| Arbitrary Wave Frequency - Maximum | 30 MHz |
| Calibration Certificate Type | NIST |
| Triangle Wave Frequency - Maximum | 500 kHz |
| Single Pulse Wave Frequency - Maximum | 12.5 MHz |
| Sine Wave Harmonic Distortion | Less Than 0.15% @ 10 Hz to 20 kHz at 0 dBm |
| Digital Display Screen Type | LCD |
| Standards | NSF-ISR |
| Arbitrary Wave Frequency - Minimum | 1 uHz |
| Number of Display Digits | 4 |
| Square Wave Frequency - Minimum | 1 uHz |
| Wave Frequency Accuracy | +/-25 PPM (1 yr.) |
| Sweep Time - Minimum | 1 msec |
| Square Wave Rise/Fall Time | Less Than 4 nsec (10%-90%) at Full Amplitude Into 50 ohm |
| Triangle Wave Frequency - Minimum | 1 uHz |
| Single Pulse Wave Frequency - Minimum | 1 uHz |
| Waveforms Generated | Arbitrary, Pulse, Sine, Square, Triangle |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

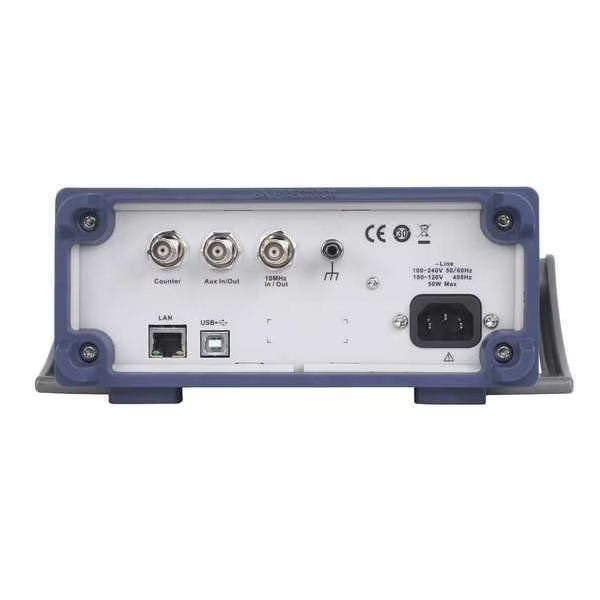

Signal Generator, 4.5" Color LCD, 30 MHz, B&K Precision, Mfr#: 4054B
$1001.99
Free shipping will be applied on orders over $50
Signal Generator, Function/Arbitrary Waveform, Sine Wave Range 1 uHz to 30 MHz, Square Wave Range 1 uHz to 30 MHz, Other Waveform Range Arbitrary 1 uHz to 12.5 MHz, Pulse 1 uHz - 12 MHz, Triangle Ramp 1 uHz to 500 kHz, Sine Wave Distortion DC - 10 MHz Less Than -60 dBc, 10 MHz to 30 MHz Less Than -50 dBc, Sq. Wave Rise/Fall Time (nS) Less Than 12 ns (10 Percent-90 Percent) At Full Amplitude Into 50 ohm
9999 in stock
