Includes
Attached Suspender Clip, Calibration Adapter and Tubing, Operating Instruction
Alarm Type
Audible, Visual and Vibrating
Features
Standard TWA and STEL
Interchangeable Sensors
Yes
Standards
ANZEx: Ex ia I/IIC T4, ATEX Ex ia I/Ex ia IIC T4, China Ex: Ex ia I/IIC T4, Cl II, Gr E-G, CMA: Ex ia I, CSA: Cl I, Gr A-D T4, Equipment Group and Category I M1/II 1G, Ex ia IIC T4, IECEX: Ex ia I/IIC T4, INMETRO: Ex ia IIC T4,UL: Cl I, Div 1, Gr A-D, T4, KC: Ex ia I/IIC T4
Temp. Range
-40 to 60 Degrees C

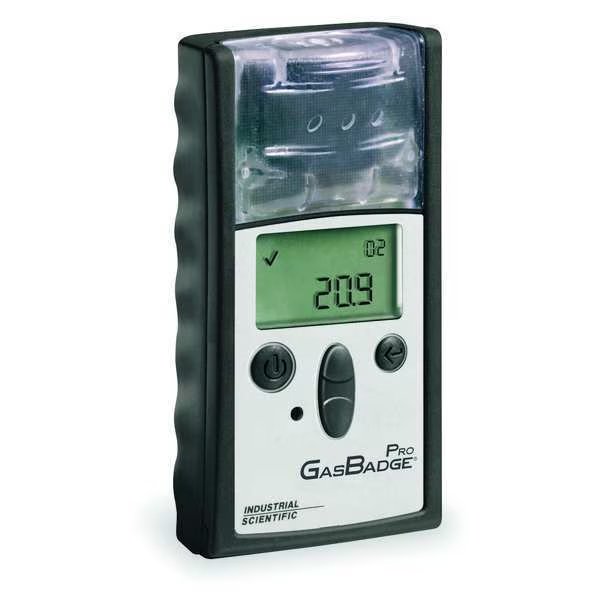

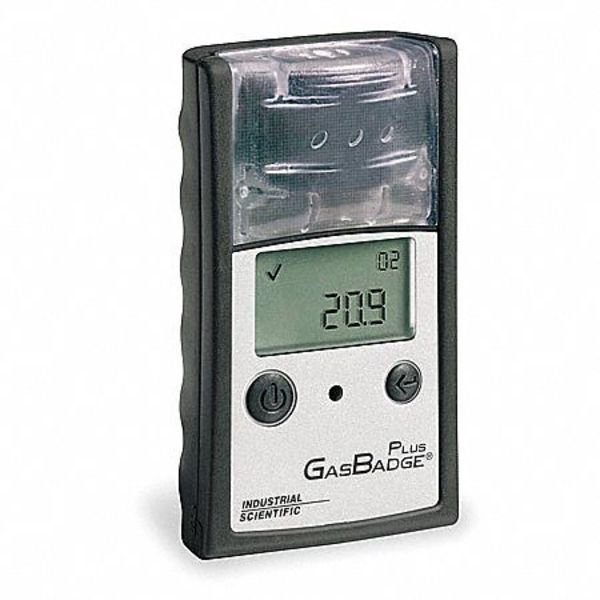

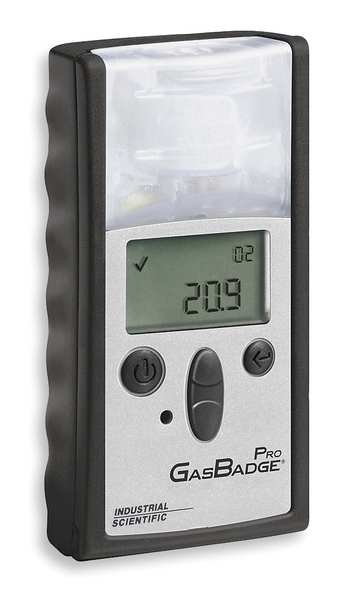

Product Type
Single-Gas Detector
Measurement Range
Hydrogen Sulfide (0 to 500 ppm in 0.1 ppm)
Includes Mounting Hardware
Yes
Resistance Properties
Water Resistant
Operating Temperature - Maximum
140 Degrees F
Housing Material
Polycarbonate
Chemical Formula
CL2, CLO2, CO, CO/H2, H2, H2S, HCN, NH3, NO2, O2, PH3, SO2
Operating Humidity - Maximum
99 %
Communication Protocol
PC-Compatible Interface
Number of Batteries Required
1
Sensor Life
2 yr (CO, H2S, O2)
Operating Humidity - Minimum
0 %
Gas Detected
Hydrogen Sulfide
Operating Temperature - Minimum
-40 Degrees F
Number of Gases Detected
1
Accuracy
+/-15% (Over Full Measurement Temperature), +/-5% (0.0 to 200.0 ppm) +/-15% (200.1 to 500.0 ppm) (At Temperature of Calibration)
Manufacturer Warranty Length
2 yr
Maintainability
Maintainable
Alarm Setting Adjustment
Adjustable Alarm Setting
Country of Origin (subject to change)
United States
