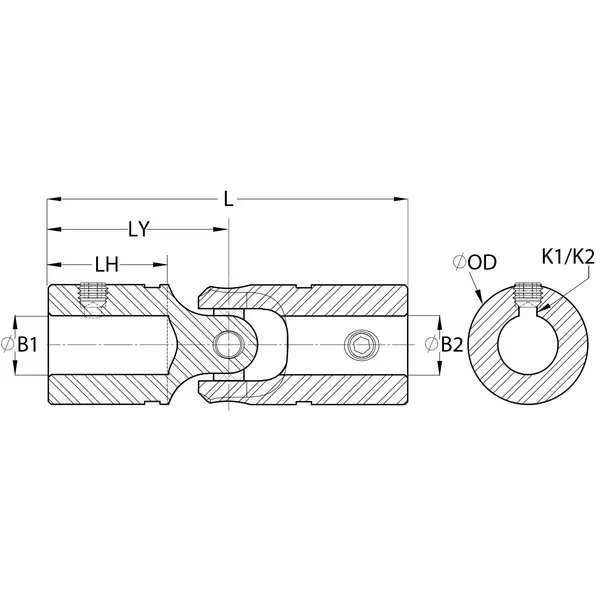

| Property | Value |
|---|---|
| Type | Single, Friciton Bearing |
| Outside Dia. | 1.495 in (38.0 mm) |
| Bore | 0.8750 in x 17 mm |
| Material | Alloy Steel |
| Lubrication | LUBRIPLATE No. 1200-2 |
| SAE or Metric | Inch/Metric |
| Keyway | 3/16 in x 5 mm |
| Setscrew | 5/16-18 |
| Weight | 1.45 lbs |
| Length | 4.250 in (108.0 mm) |
| B2 Shaft Penetration | 1.400 in (35.6 mm) |
| Hub Depth | 1.400 in (35.6 mm) |
| B1 Shaft Penetration | 1.400 in (35.6 mm) |
| Matching Boot | UBOOT24/38-NI-KIT |
| Style | Roud Bore, Set Screw, Keyway |
| Rated Torque | 2000 in-lb (226.0 Nm) |
| Max Operating Angle | 45° |
| Max. Torque | 10000 in-lb (1129.8 Nm) |
| Set Screw Size | 5/16/2018 |
| Bore Tolerance | +0.0010 in / -0.0000 in (+0.025 mm / -0.000 mm) |
| Yoke Length (LY) | 2.125 in (54.0 mm) |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |
Single U-Joint, 7/8" x 17 mm Bores, 1.495" (38.0 mm) OD, Steel, Ruland, Mfr#: USSK24-7/8"-17MM-F
$418.99
Free shipping will be applied on orders over $50
This Ruland single friction bearing universal joint with set screws and keyways has 0.8750" x 17mm bores, a 1.495" (38.0mm) outer diameter, and a 4.250" (108.0mm) length. It is best suited for applications requiring a short length and high torque (when compared to double universal joints of an equivalent OD). This single universal joint is made of a block, two pins, and two yokes. These components are manufactured to tight tolerances using proprietary processes that ensure smooth operation and high misalignment accommodation up to 45°, which is a significant improvement over commodity style single universal joints. It is made from high grade alloy steel for high torque capabilities. The user can add a boot to protect the joint from unwanted contaminants and increase service life. This single universal joint is manufactured in the USA.
9999 in stock
