| Property | Value |
|---|---|
| Item | Sleeve Bearing |
| Inside Dia. | 1 15/16 in |
| Outside Dia. | 2 7/16 in |
| Length | 4 in |
| Material | Metal |
| Temp. Range (F) | -40 Degrees to 500 Degrees F |
| Max. Pv | 75,000 lb/sq in-fpm |
| Color | Bronze |
| Minimum Temperature | -450 Degrees F |
| Maximum Temperature | 500 Degrees F |
| System of Measurement | Inch |
| Outside Diameter | 2 7/16 in |
| Overall Length | 4 in |
| Plain Bearing Material | Bronze |
| Flange Diameter | Not Applicable |
| Flange Type | Non-Flanged |
| Maximum PV | 75,000 lb/sq in-fpm |
| Bronze Material Type | Cast Bronze |
| Material Grade | C93200 (SAE 660) |
| Bore Diameter | 1 15/16 in |
| Length Tolerance | +/-0.005 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

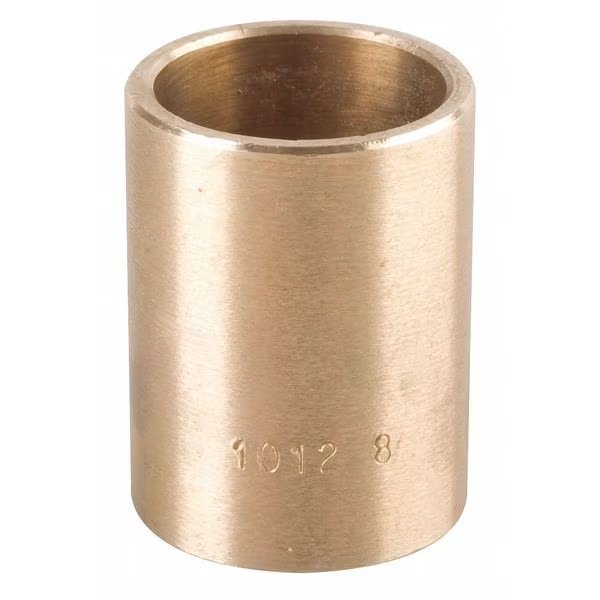

Sleeve Bearing, I.D. 1-15/16, L 4, Bunting Bearings, Mfr#: CB313932
$44.59
Free shipping will be applied on orders over $50
Sleeve Bearing, Bore Diameter 1 15/16 in, Bronze Material Type Cast Bronze, Flange Diameter Not Applicable, Flange Type Non-Flanged, Material Group Metallic, Maximum Temperature 500 Degrees F, Minimum Temperature -450 Degrees F, Outside Diameter 2 7/16 in, Overall Length 4 in, Plain Bearing Material Bronze, System of Measurement Inch, Color Bronze, Length Tolerance +/-0.005 in, Material Grade C93200 (SAE 660)
9999 in stock
