| Property | Value |
|---|---|
| Output Voltage | 480V AC |
| Protects | Motors and Critical Loads |
| Control Voltage | 110 to 230V AC |
| Display | None |
| Enclosure Rating | NEMA 1 |
| Includes | 2-Phase Control Soft Starter with FLA 4A |
| Start Type | Reduced Voltage Starting, Torque Limiting on Start-Up |
| Standards | CSA22.2-14, IEC/EN 60947-4-2, UL 508 |
| Depth | 3.74 in |
| Frequency | 50/60 Hz |
| HP @ 3 Phase - 480V | 2 hp |
| IP Rating | 20 |
| Output Current | 3.7 A |
| Width | 1.77 in |
| Inputs/Outputs | 2 Relay Output |
| HP @ 3 Phase - 240V | 3/4 hp |
| HP @ 3 Phase - 208V | 3/4 hp |
| Input Voltage | 480V AC |
| Application | Constant and Variable Torque |
| Ramp Time | 1 to 30 sec. |
| Stop Time | 0 to 30 sec |
| Item | Soft Start |
| Phase | Three |
| Height | 5.12 in |
| Starting Torque | 30% to 80% |
| With Bypass / No Bypass | No Bypass |
| Overall Height | 5.125 in |
| Overall Width | 1.77 in |
| HP @ 3 Phase - 460V | 2 hp |
| HP @ 3 Phase - 230V | 3/4 hp |
| Overall Depth | 3.74 in |
| Function Type | Start or Stop |
| Output Power | 2 hp @ 3 Phase, 480V AC, 3/4 hp @ 3 Phase, 200V AC, 3/4 hp @ 3 Phase, 240V AC |
| Type | Dial Control |
| Country of Origin (subject to change) | United Kingdom |
| Package Quantity | 1 |

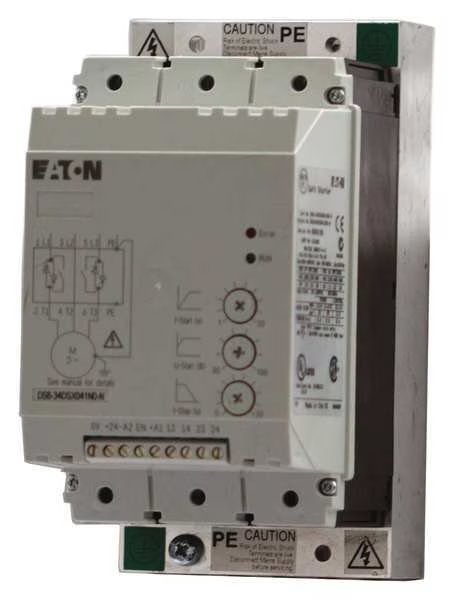

Soft Start Controller, 3 Phase, 240/480VAC, Eaton, Mfr#: DS7-342SX004N0-N
$296.99
Free shipping will be applied on orders over $50
Soft Start, Input Voltage 480V AC, Output Current 3.7 A, Output Voltage 480V AC, 2 hp @ 3 Phase, 480V AC, 3/4 hp @ 3 Phase, 200V AC, 3/4 hp @ 3 Phase, 240V AC, Control Voltage 110 to 230V AC, NEMA 1
9999 in stock
Subtotal:
$296.99
