Voltage | 24V DC |
Operational Pressure Range | 0 to 150 psi |
Pressure Range | 0 to 150 psi |
Electrical Connections | DIN Connectors |
Overall Height | 2 7/16 in |
Valve Ways and Positions | 3-Way/2-Position |
Max. CFM - Valves | 2.2 cfm |
Item | Solenoid Air Control Valve |
Overall Width | 7/8 in |
Shifting Technology | Direct |
Ambient Temp. Range | 0 Degrees to 122 Degrees F |
Coefficient of Volume | 0.062 |
Pipe Size | 1/8 in |
Actuator/Return | Solenoid/Spring |
Standards | CSA #LR51090, UL #MH13513 |
Overall Length | 1 5/8 in |
Body Style | Body Ported |
Air Valve Type | 3-Way, 2-Position |
NEMA Classification | NEMA 4 |
Valve Actuator / Return | Solenoid / Spring |
CFM | 2.2 |
Power Consumption | 1.1 W |
Normally Open / Normally Closed | Normally Closed |
Country of Origin (subject to change) | United States |
Package Quantity | 1 |

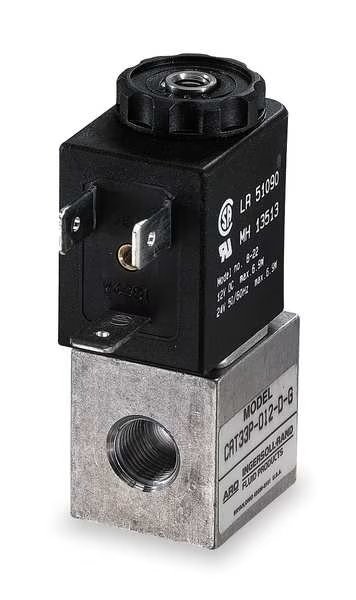

Solenoid Air Control Valve, 1/8 In, 24VDC, ARO, Mfr# CAT33P-024-L
$86,45
-3% / ea
with subscription
Free shipping will be applied on orders over $50
Solenoid Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Voltage 24V DC, Valve Actuator / Return Solenoid / Spring, Pipe Size 1/8 in, Max. CFM - Valves 2.2 cfm, Operational Pressure Range 0 to 150 psi, NEMA Classification NEMA 4, Normally Closed, Body Style Body Ported, Coefficient of Volume 0.062, DIN Connectors Electrical Connections, Shifting Technology Direct, Power Consumption 1.1 W, Ambient Temp. Range 0 Degrees to 122 Degrees F, Overall Height 2 7/16 in
9999 in stock
Must order in multiples of 1
