| Item | Solenoid Air Control Valve |
| Valve Ways and Positions | 3-Way/2-Position |
| Voltage | 120V AC |
| Valve Actuator / Return | Solenoid / Spring |
| Coefficient of Volume | 2.7 |
| Pipe Size | 3/8 in |
| Max. CFM - Valves | 2.5 cfm |
| Operational Pressure Range | 20 to 145 psi |
| NEMA Classification | NEMA 4 |
| Overall Width | 1 1/2 in |
| Pilot Port Size | 3/8 in NPT |
| Normally Open / Normally Closed | Normally Closed |
| Ambient Temp. Range | 5 Degrees to 120 Degrees F |
| Body Style | Body Ported |
| Valve Vacuum Range | 0 to 28 in Hg |
| Override | Non-Locking Flush |
| Pressure Range | 20 to 145 psi |
| Standards | CE, CSA, cUS |
| Electrical Connections | 15mm, 3-Pin Male DIN |
| Overall Length | 5 1/2 in |
| Overall Height | 2 1/2 in |
| Actuator/Return | Solenoid/Spring |
| Air Valve Type | 3-Way, 2-Position |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

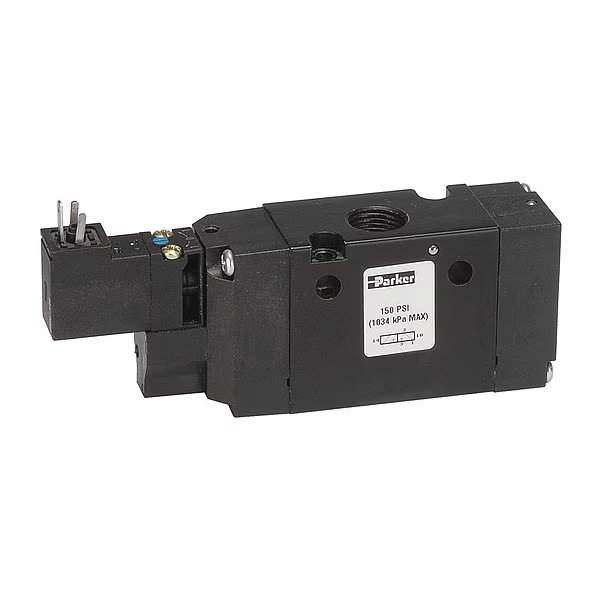

Solenoid Air Control Valve, 3/8 In, 120VAC, PARKER, Mfr# B6V2BB553A
$275,99
-$8.28 / ea
with subscription
Free shipping will be applied on orders over $50
Solenoid Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Voltage 120V AC, Valve Actuator / Return Solenoid / Spring, Pipe Size 3/8 in, Max. CFM - Valves 2.5 cfm, Operational Pressure Range 20 to 145 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 28 in Hg, Normally Closed, Body Style Body Ported, Pilot Port Size 3/8 in NPT, Coefficient of Volume 2.7, 15mm, 3-Pin Male DIN Electrical Connections, Ambient Temp. Range 5 Degrees to 120 Degrees F, Override Non-Locking Flush
9999 in stock
Must order in multiples of 1
Subtotal:
$275.99
