| Property | Value |
|---|---|
| Item | Spiral Flute Tap |
| Tap Thread Size | #5-40 |
| Tap Chamfer | Modified Bottoming, Semi-Bottoming |
| Number of Flutes | 2 |
| Tap Finish | TiCN |
| Thread Standard | UNC |
| Thread Length | 3/16 in |
| Tap Material | Powdered Metal |
| 75% Thread Drill Size | #39 |
| Thread Limit | H2 |
| Tap Size | #5 |
| Measurement System | Pipe |
| Cutting Direction - Machining | Right Hand |
| 55% Thread Drill Size | #36 |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Tap Length Standard | DIN |
| Coolant Fed | Non-Coolant Through |
| Standards | DIN |
| Helix Angle | Variable |
| Overall Length | 2 3/16 in |
| Shank Type - Machining | Straight |
| Shank Length | 1 15/32 in |
| Tap Shank Standard | DIN |
| 65% Thread Drill Size | #37 |
| Material Grade - Machining | 16505 |
| Shank Dia. | 9/64 in |
| Secondary Material Application | Aluminum, Cast Iron, Steel |
| Primary Material Application ISO Code | H, M, P |
| Thread Size | #5-40 |
| Square Size | 0.1090 in |
| Threads per Inch | 40 |
| Drill Bit Size | 0.0990 in, 0.1006 in, 0.1023 in, 0.1039 in, 0.1055 in |
| Tap Style | Spiral Flute |
| Secondary Material Application ISO Code | K, N, P |
| Thread Direction | Right Hand |
| Extended Neck | Yes |
| Series | 16505 |
| Size | #5 |
| Thread Limit / Class of Fit | H2 |
| Country of Origin (subject to change) | Japan |
| Package Quantity | 1 |

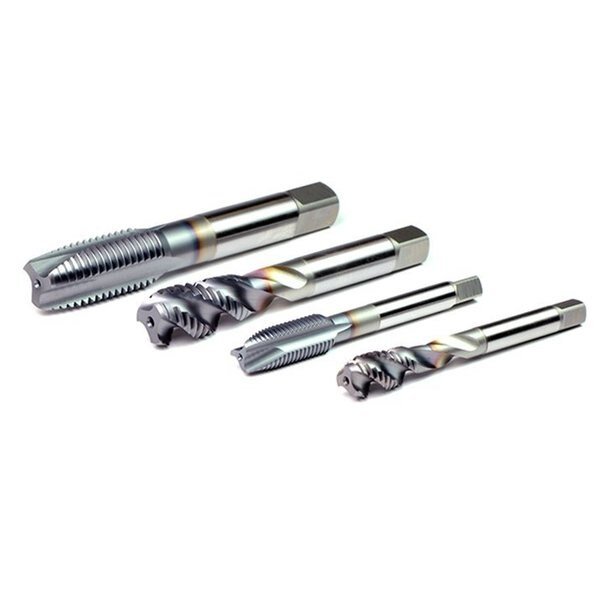

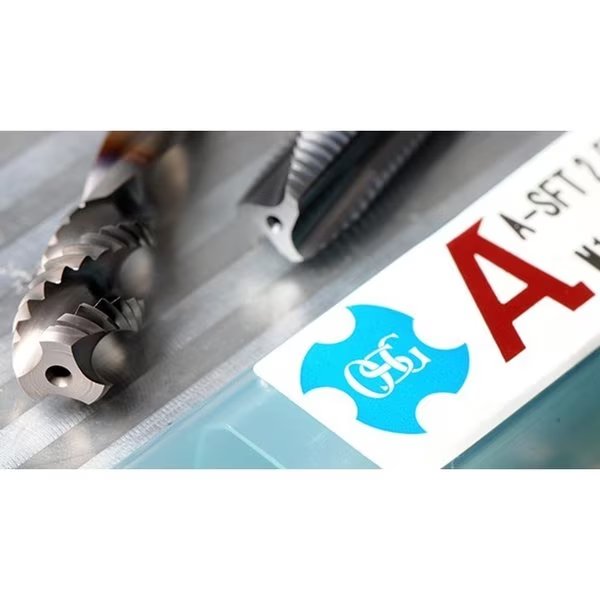

Spiral Flute Tap, #5-40, Modified Bottom, Semi-Bottom, 2 Flutes, Osg, Mfr#: 1650500308
$34.95
Free shipping will be applied on orders over $50
Spiral Flute Tap, Thread Size #5-40, UNC, Overall Length 2 3/16 in, Powdered Metal, TiCN, Thread Length 3/16 in, 75 Percent Thread Drill Size #39, Thread Limit H2, Thread Direction Right Hand, Number of Flutes 2
9999 in stock
Subtotal:
$34.95
