Item

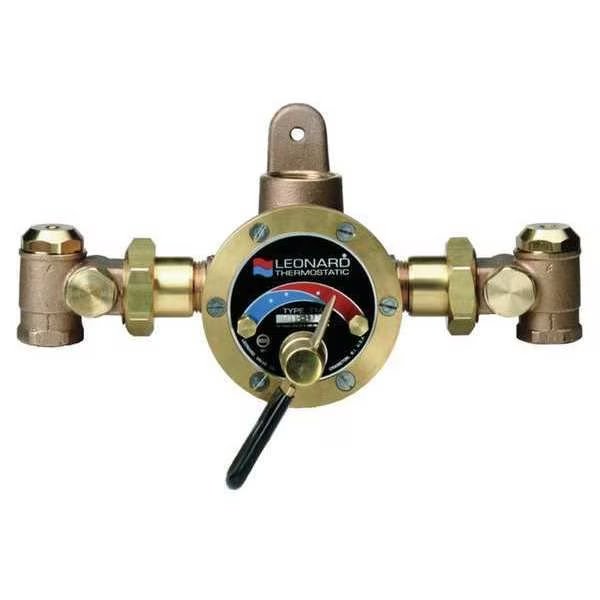

Thermostatic Mixing Valve
Temp. Range
65 Degrees to 140 Degrees F
Inlet Temperature (Hot)
120 Degrees to 200 Degrees F
Includes
Color Coded Temperature Scale, Heat Resistant Temperature Adjusting Lever, High Temperature Limit Stop, Integral Wall Support
Material of Construction
Brass
Series
TMS Steam u0026 Water Mixer
Connection Size - Outlet
3/4 in
Connection Size - Inlet
3/4 in
Inlet Connection Type - Hot
NPT
Inlet Temperature - Minimum Hot
120 Degrees F
Coefficient of Volume (Cv)
Not Applicable
Inlet Temperature - Maximum Hot
200 Degrees F
Outlet Connection Size
3/4 in
Outlet Connection Type
NPT
Inlet Connection Size - Cold
3/4 in
Inlet Temperature - Minimum Cold
40 Degrees F
Operating Temperature - Minimum Outlet
65 Degrees F
Operating Pressure - Minimum
30 psi
Inlet Connection Size - Hot
3/4 in
Operating Pressure - Maximum
80 psi
Operating Temperature - Maximum Outlet
140 Degrees F
Includes Temperature Gauge
Temperature Gauge Not Included
Inlet Connection Type - Cold
NPT
Inlet Temperature - Maximum Cold
85 Degrees F
Country of Origin (subject to change)
United States
