HP
1/3 (Primary); 1/3 (Secondary)
Body Material
Cast Iron, Stainless Steel (Primary); ABS (Secondary)
Switch Actuation
Dual Micro Reed
Flow Rate @ 10 Ft. of Head
50.0 gpm (Primary); 40.0 gpm (Secondary)
Max. Head
30.0 ft (Primary)

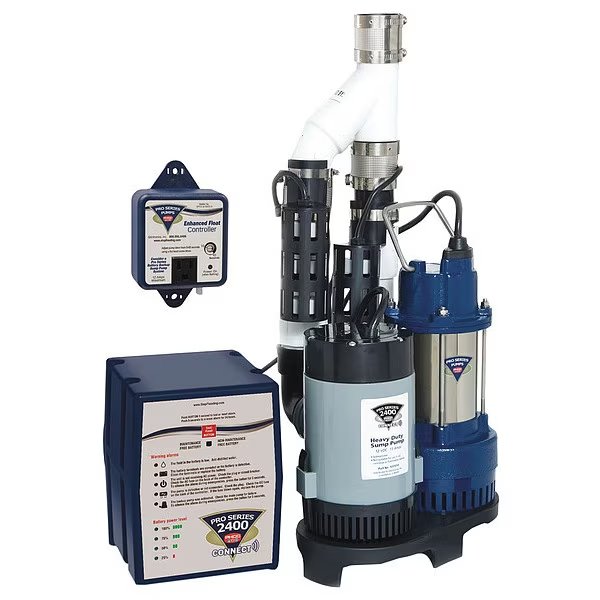

Item
Sump/Battery Back-Up System
Max. Flow (GPH) - Pumps
3900
Housing Material
Cast Iron Stainless Steel (Primary); ABS (Secondary)
For Use With
Mfr. No. B-2200
GPH of Water @ 0 Ft. of Head
3900 (Primary), 4000 (Secondary)
Off Point (In.)
10 seconds after the float drops which normally empties the pit (Primary) 30 Seconds (Secondary)
Max. Diameter Solids
7/8 in
Motor Type
PSC (Primary); Brush type DC (Secondary)
Impeller Material
Polycarbonate (Primary)
Item - Sump Pumps
Sump/Battery Back-Up System
Shaft Seal
Dual Carbon Ceramic (Primary); Rulon (Secondary)
Switch Type - Pumps
Caged Automatic Dual Float
GPH of Water @ 15 Ft. of Head
2520 (Primary) 600 (Secondary)
Off Point
10 sec After the Float Drops Which Normally Empties the Pit (Primary); 30 sec (Secondary)
GPH of Water @ 5 Ft. of Head
3540 (Primary), 3100 (Secondary)
Shaft Seal Material - Pumps
Carbon, Ceramic
On Point (In.)
9 1/2 (Primary); 11 1/2 (Secondary)
GPM of Water @ 5 Ft. of Head
59 (Primary), 51.67 (Secondary)
Cord Length - Pumps
10 ft. (Primary), 7 ft. (Secondary)
Includes
2 Pumps, Battery Box, Battery Fill Bottle, Monitoring Controller
Impeller Material - Pumps
Polycarbonate
Pump Body Material
Cast Iron, Stainless Steel (Primary), ABS (Secondary)
Max. Dia. Solids (In.) - Back-Up
1/8
Max. Head (Ft.) - Back-Up
17
12VDC Battery Charger
13 Amps
GPH of Water @ 10 Ft. of Head
3000 (Primary); 2400 (Secondary)
Max. Flow (GPH) - Back-Up
4000
Base Material
Non-corrosive Polypro. Strainer (Primary) ABS (Secondary)
Duty
Continuous (Primary); Intermittent (Secondary)
Max. Liquid Temp.
104 Degrees F
Switch Type
Caged Automatic Dual Float
Primary Pump Flow Rate @ 5 Ft. of Head
59.0 gpm
Primary Pump Impeller Material
Polycarbonate
Primary Pump Maximum Solids Diameter
7/8 in
Flow Rate @ 15 Ft. of Head
42.0 gpm (Primary); 10.0 gpm (Secondary)
Primary Pump Overall Height
22 1/4 in
Secondary Pump Duty Cycle
Intermittent
Flow Rate @ 5 Ft. of Head
59.0 gpm (Primary); 51.7 gpm (Secondary)
Secondary Pump Flow Rate @ 15 Ft. of Head
10.0 gpm
Primary Pump Flow Rate @ 20 Ft. of Head
30.0 gpm
Secondary Pump Rated Voltage
12V DC
Switch Electrical Connection
Piggyback
Secondary Pump Flow Rate @ 10 Ft. of Head
40.0 gpm
Primary Pump Body Material
Cast Iron, Stainless Steel
Secondary Pump Shaft Seal Material
Rulon
Primary Pump Maximum Head
30 ft
Secondary Pump Maximum Head
17 ft
Primary Pump Width at Widest Point
10 in
Primary Pump Rated Voltage
115V AC
Primary Pump Duty Cycle
Continuous
Secondary Pump Maximum Solids Diameter
1/8 in
Width at Widest Point
10 in
Duty Cycle
Continuous; Intermittent
Secondary Pump Body Material
ABS
Primary Pump Flow Rate @ 10 Ft. of Head
50.0 gpm
Primary Pump Shaft Seal Material
Dual Carbon Ceramic
Primary Pump Flow Rate @ 15 Ft. of Head
42.0 gpm
Secondary Pump Flow Rate @ 5 Ft. of Head
51.7 gpm
Flow Rate @ 20 Ft. of Head
30.0 gpm (Primary)
Country of Origin (subject to change)
Multiple
