| Item | Linear Ball Bearing |
| Type | Closed |
| Bore Dia. | 12 mm |
| Outside Dia. | 22 mm |
| Material | Delrin |

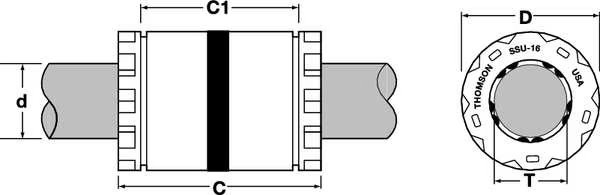

| Dimension C1 | 22.6 mm |
| Self-Alignment | Self-Aligning |
| Temp. Range (F) | 0 - 185 |
| Length (mm) | 32 mm |
| Required Housing Bore Dia. (mm) | 22 mm |
| Length (In.) | 32 mm |
| Inside Dia. Tolerance | + .011 |
| Dimension T | 12 |
| Dimension C | 32 in |
| For Use With | Thomson Shafting |
| Accelerated Speed | 150 mm/sec |
| Steady State Speed | 3 mm/sec |
| Dynamic Load Capacity (N) | 830 N |
| Between Grooves (mm) | 22.6 mm |
| Load Capacity | 650 |
| Operating Temperature Range | 0 Degrees F to 185 Degrees F |
| Maximum Operating Temperature | 185 Degrees F |
| System of Measurement | Metric |
| Brand & Series | THOMSON Super |
| Series | Super |
| Minimum Operating Temperature | 0 Degrees F |
| Inside Dia. | 12 mm |
| Included Wiper Seals | No Wipers |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
Super Plus Bushing, Bore Dia 12 mm, THOMSON, Mfr# SPM12
-3% / ea
with subscription
Free shipping will be applied on orders over $50
Linear Ball Bearing, Type Closed, Inside Dia. 12 mm, Outside Dia. 22 mm, Material Delrin, Accelerated Speed 150 mm/sec, Between Grooves (mm) 22.6 mm, Dimension C 32 in, Dimension C1 22.6 mm, Dimension T 12, Dynamic Load Capacity (N) 830 N, For Use With Thomson Shafting, Inside Dia. Tolerance + .011, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature 0 Degrees F, Length (In.) 32 mm, Seal -
