| Type | Outdoor |
| Voltage | 24V AC |
| Includes | Conduit Adapter |
| For Use With | HVAC Control Systems |
| Connection | Terminal Block |
| Outputs | 0 to 10V |
| Dehumidification Capability | No |
| Item | Temperature Sensor |
| Occupancy Control Sensor | No |
| Dimensions | 6-1/4 in x 3-1/2 in x 2-1/2 in |
| Building Type | Commercial |
| Compatible With | HVAC Control Systems |
| Features | Responsive to Temperature Changes, Accurate and Reliable, Easy to Install Requires No Special Tools |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Product Type | Outdoor Temperature Sensor |
| Housing Color | Gray |
| Compatible Building Automation Protocols | BACnet IP, BACnet MS/TP, LonWorks, LoRaWAN, Modbus, MP-Bus |
| Maximum Operating Temperature | 122 Degrees F |
| Maximum Sensing Temperature | 122 Degrees F |
| Housing Type | Conduit Box |
| Sensor Accuracy | +/-0.90 Degrees F |
| Overall Depth | 1 1/2 in |
| Electrical Connection Type | Hardwired |
| Minimum Sensing Temperature | -58 Degrees F |
| Standards | EN 60730-1, EU Conformity, RCM, UL 873 |
| Manufacturers Warranty Length | 5 yr |
| Overall Width | 3 1/8 in |
| Temperature Accuracy | +/-1.60 Degrees F |
| Minimum Operating Temperature | -40 Degrees F |
| Housing Material | Plastic |
| Probe Length | Not Applicable |
| Output | 0 to 10V DC |
| NEMA Rating | Not Applicable |
| Overall Height | 3 1/2 in |
| Series | QAC31 |
| Measurement Type | Single |
| Display Type | None |
| IP Rating | IP54 |
| Application | Air Conditioning, Heating, Ventilation |
| Country of Origin (subject to change) | China |
| Package Quantity | 1 |

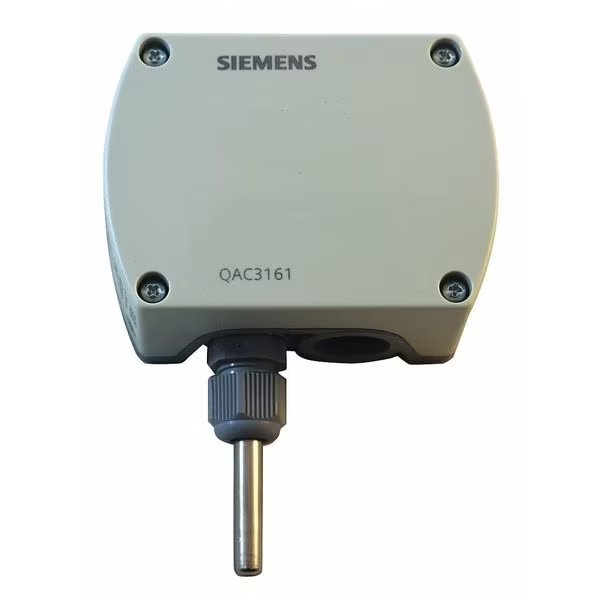

Temp. Sensor, Outdoor, 0 to 10V, SIEMENS, Mfr# QAC3161
$93,05
Free shipping will be applied on orders over $50
Temperature Sensor, Display Type None, Output 0 to 10V DC, Housing Type Conduit Box, Housing Material Plastic, Housing Color Gray, Probe Length Not Applicable, Temperature Accuracy +/-1.60 Degrees F, Electrical Connection Type Hardwired, NEMA Rating Not Applicable, Product Type Outdoor Temperature Sensor, Maximum Sensing Temperature 122 Degrees F, Minimum Sensing Temperature -58 Degrees F, For Use With Building Automation Systems Building Automation System Compatible
Out of stock
