| Property | Value |
|---|---|
| CAD Available | Yes |
| Item | Self Locking Thread Insert |
| Internal Thread Size | #10-32 |
| Material | 18-8 Stainless Steel |
| Overall Length | 13/32 in |
| Insert Diameter | 3/8 in |
| External Thread Size | 3/8 |
| Wall Type | Heavy Wall |
| Thread Type | UNC Internal/UNC External |
| Drill Bit Size | 5/16 in |
| Installation Method | Screwdriver, Bolt/Nut, or Power Drive Tool |
| Minimum Installation Depth | 15/32 in |
| Tensile Strength (PSI) | 89,900 psi |
| Brinell Hardness | 160 |
| Internal Thread Class | 2B |
| Tap Sizes | 3/8-16 |
| Application | For Use on Metal |
| External Thread Class | 2A |
| Power Driver | 4ZE53 |
| Finish | Plain |
| Features | Pre-Applied Adhesive Activates On Installation, Vibration Resistant |
| Min. Full Thread Depth | 15/32 |
| External Thread Fit | 2A |
| Material Grade/Class | 18-8 |
| Full Cure Time | 72 hr |
| Thread Direction | Right Hand |
| Tensile Strength | 89,900 psi |
| System of Measurement | Inch |
| Internal Thread Fit | 2B |
| Compatible Tap Size | 3/8 |
| Series | E-Z LOK |
| Compatible Material | Metal |
| Maximum Hole Diameter | 0.313 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 5 |

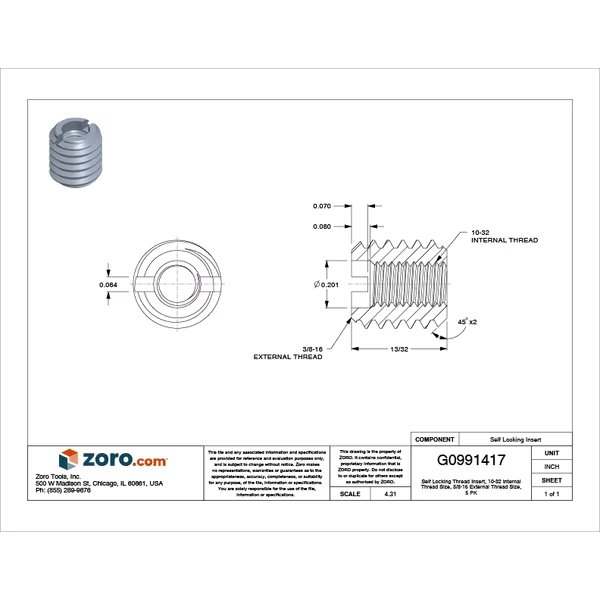

Heavy Wall Self Locking Thread Insert, #10-32 Int Thrd Sz, 18-8 Stainless Steel, 5 PK, E-Z Lok, Mfr#: 303-332-PK5
$14.99
Free shipping will be applied on orders over $50
Self Locking Thread Insert, Compatible Material Metal, Compatible Tap Size 3/8 In.-16, Drill Bit Size 5/16 in, External Thread Fit 2A, External Thread Size 3/8 In.-16, Finish Plain, Insert Diameter 3/8 in, Internal Thread Fit 2B, Internal Thread Size #10-32, Material Stainless Steel, Material Grade/Class 18-8, Maximum Hole Diameter 0.313 in, Minimum Installation Depth 15/32 in, Overall Length 13/32 in, System of Measurement Inch, Thread Direction Right Hand, Thread Type UNF Internal/UNC External
9999 in stock
Subtotal:
$14.99
