| Property | Value |
|---|---|
| Bore Dia. | 5 in |
| Stroke Length | 30 in |
| Max. Pressure | 3000 |
| Retracted Length | 42.25 in |
| Rod Dia. | 2.25 in |
| Port Size | SAE 12 |
| Column Load | 56340 lbs |
| Extended Length | 72.25 in |
| Pin Dia. | 1.25 in |
| Weight | 153 lbs |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

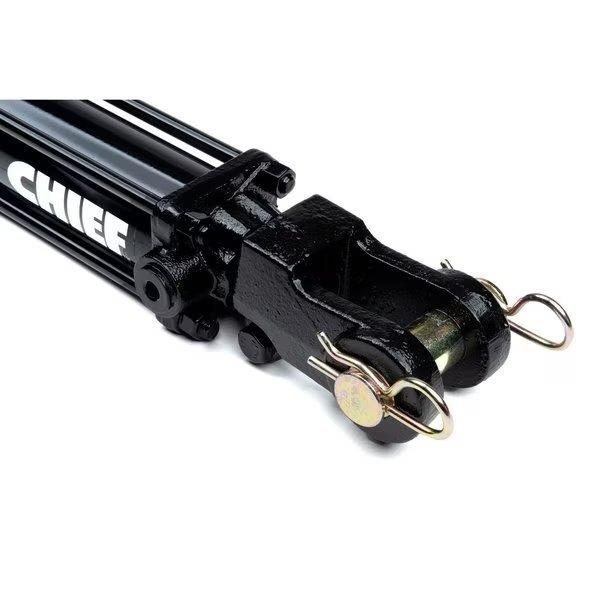

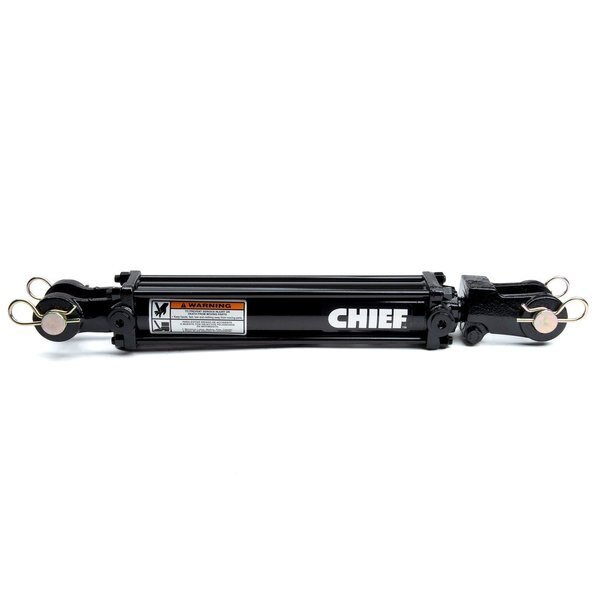

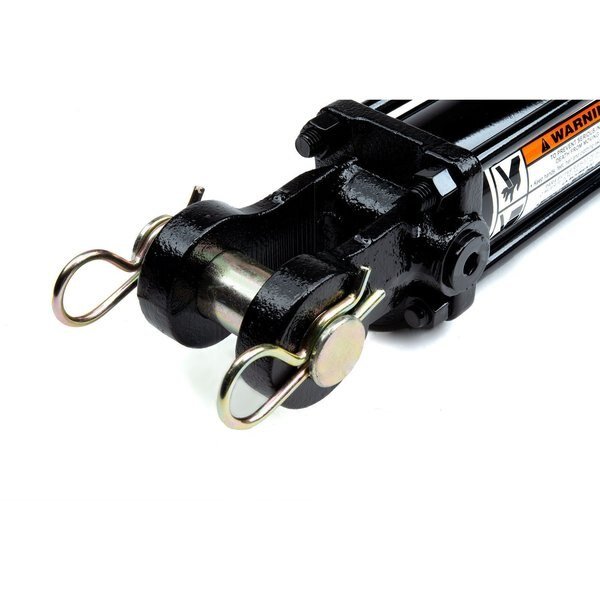

Tie-rod Hydraulic Cylinder: 5 Bore x 30 Stroke - 2.25 Rod, Bailey, Mfr#: 211430
$1222.99
Free shipping will be applied on orders over $50
This Chief TC3 tie-rod hydraulic cylinder, rated at 3000 PSI, has a 5 in. bore X 30 in. stroke. TC3 cylinders are designed for use in a variety of double-acting applications including agricultural, compact construction and transportation equipment as well as waste and recycling. They provide outstanding performance and use clevis mounts for easy hookup. Featuring SAE O-ring ports for easy hookup every Chief TC3 cylinder is functionally tested and pressurized to 1.5 times the normal working pressure to ensure performance reliability. Every Chief TC3 comes with a 3-year warranty.
9999 in stock
Subtotal:
$1222.99
