Item - Relay

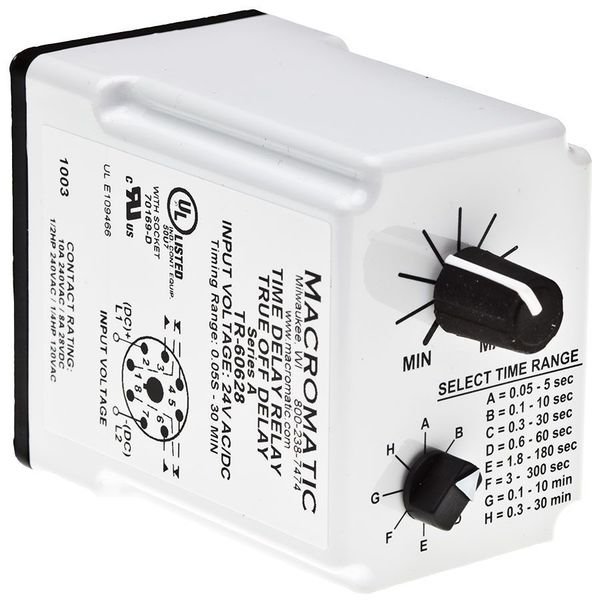

Single Function Timing Relay
Function - Timing Relay
Power Off Delay (True Off Delay)
AC Contact Rating - Relay
10A @ 240V
DC Contact Rating - Relay
8A @ 28V
Base Type - Plug In Relay
Octal

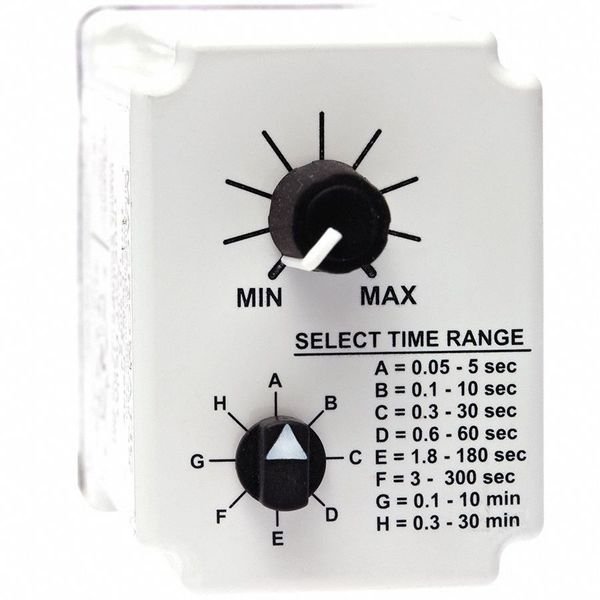

Adjustment Method - Timer
Potentiometer
Min. Time Setting - Timer
0.05 sec
Max. Time Setting - Timer
30 min
Power Consumption - Relay
2 VA
Item
Single Function Time Delay Relay
Function
Power Off Delay (True Off Delay)
Socket
1EGP3, 1EGP5, 5X852
Min. Time Setting
0.05 sec.
Overall Height - Relay
3.1 in
Hz - Electrical
50 Hz, 60 Hz
Standards
CE Certified, UL Listed
Contact Material
Silver Nickel
Body Height - Relay
2.9 in
Adjustment Method
Rotary Switch
Contact Amp Rating (Resistive)
10A
Electrical Connection
Socket
Time Range
0.05 sec - 30 min
Maximum Time Setting
30 min
Flat Pin Width
Not Applicable
Maximum Operating Temperature
149 Degrees F
Contact Rating (AC)
10 A @ 240V
Minimum Operating Temperature
-18 Degrees F
Mechanical Operating Durability
2,000,000
Reset Method
Time-Limit Reset
Adjustment Interface
Analog
Contact Rating (DC)
8 A @ 28V
Number of Delay Functions
1
Maximum Time Setting Range
1 - 59 min
Minimum Time Setting
0.05 sec
Temperature
-28°to 65°C (-18°to 149°F)
Enclosure Style
Plug-in case utilizing industry-standard 8 pin octal sockets
Timing Range
Multi-range (8): 0.05 seconds - 30 minutes
Repeat Accuracy (Constant Voltage u0026 Temperature)
+1% or 50ms, whichever is greater
Life
Mechanical: 2,000,000 operations; Full Load: 100,000 operations
Output Contacts
10A @ 240V AC, 8A @ 28V DC, 1/2HP @ 240V AC, 1/4HP @ 120V AC, B300 u0026 R300
Voltage Tolerance
AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation: +10/-15% of nominal.
Configuration / Contact Rating
DPDT. 10A @ 240V AC, 8A @28V DC, 1/2 HP @ 240V AC, 1/4HP@ 120V AC, B300 u0026 R300
Setting Accuracy
Maximum Setting (Adjustable): +5%, -0%; Minimum Setting (Adjustable): +0%, -50%.
Country of Origin (subject to change)
United States
