Item - Relay

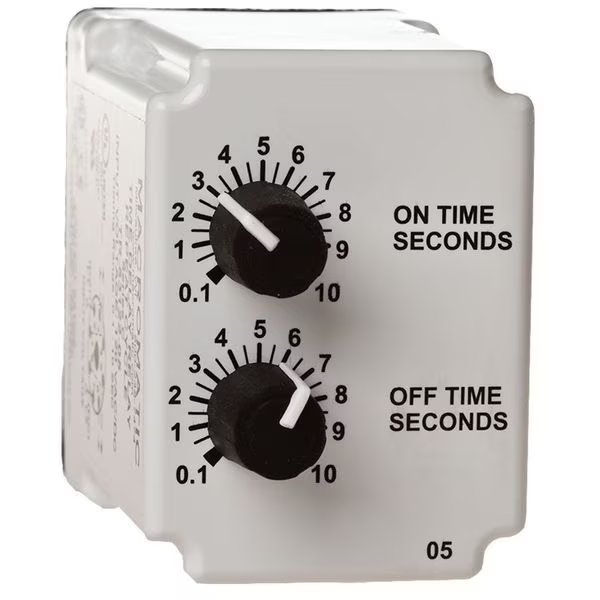

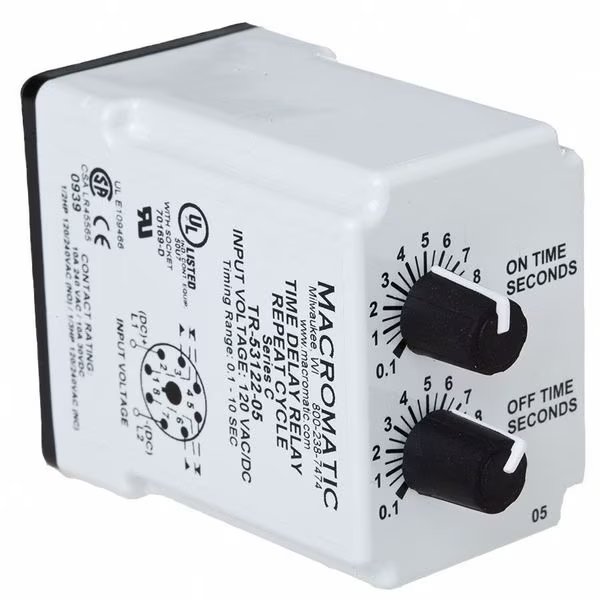

Single Function Timing Relay
Function - Timing Relay
Repeat Cycle (On First)
AC Contact Rating - Relay
10A @ 240V
DC Contact Rating - Relay
10A @ 30V
Base Type - Plug In Relay
Octal
Adjustment Method - Timer
Potentiometer
Min. Time Setting - Timer
0.1 sec
Max. Time Setting - Timer
10 sec
Power Consumption - Relay
2 VA
Standards
CE Certified, CSA Certified, UL Listed, UL Socket
Contact Material
Silver Nickel
Item
Single Function Time Delay Relay
Body Height - Relay
2.9 in
Min. Time Setting
0.10 sec.
Electrical Connection
Socket
Socket
1EGP3, 1EGP5, 5X852
Overall Height - Relay
3.1 in
Hz - Electrical
50 Hz, 60 Hz
Function
Repeat Cycle (On First)
Contact Amp Rating (Resistive)
10A
Adjustment Method
Potentiometer
Time Range
0.1 sec - 10 sec
Minimum Operating Temperature
-18 Degrees F
Maximum Time Setting
10 sec
Adjustment Interface
Analog
Maximum Operating Temperature
122 Degrees F
Contact Rating (DC)
10 A @ 30V
Maximum Time Setting Range
0 - 59 sec
Operating Time Accuracy
+0% -50% (Minimum Setting (Adjustable)), +2% 50ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
Electrical Operating Durability
100,000
Contact Rating (AC)
10 A @ 240V
Minimum Time Setting
0.1 sec
Mechanical Operating Durability
10,000,000
Number of Delay Functions
1
Reset Method
Time-Limit Reset
Flat Pin Width
Not Applicable
Timing Range 2
0.1 - 10 seconds
Maximum Setting (Adjustable)
+5%, -0%;
Minimum Setting (Adjustable)
+0%, -50%.
Output Contacts
10A @ 240V AC, 8A @ 28V DC, 1/2HP @ 240V AC, 1/4HP @ 120V AC, B300 u0026 R300
Enclosure Style
Plug-in case utilizing industry-standard 8 or 11 pin octal sockets
Temperature
-28°to 65°C (-18°to 149°F)
Timing Range
0.1 - 10 seconds
Repeat Accuracy (Constant Voltage u0026 Temperature)
+1% or 50ms, whichever is greater
Configuration / Contact Rating
DPDT u0026 SPDT. 10A @ 240V AC/30V DC, 1/2HP @ 120/240V AC (N.O.),1/3HP @ 120/240V AC (N.C.), B300 u0026 R300
Voltage Tolerance
AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation: +10/-15% of nominal.
Fixed
+2% or 100ms, whichever is greater
Life
Mechanical: 2,000,000 operations; Full Load: 100,000 operations
Country of Origin (subject to change)
United States
