Item - Relay

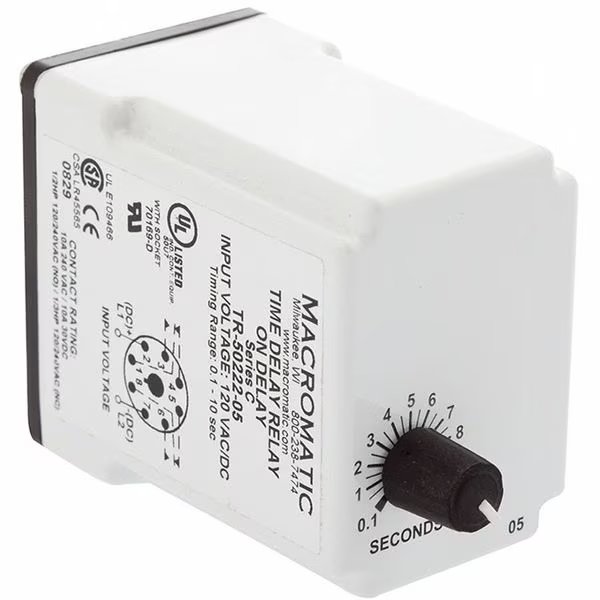

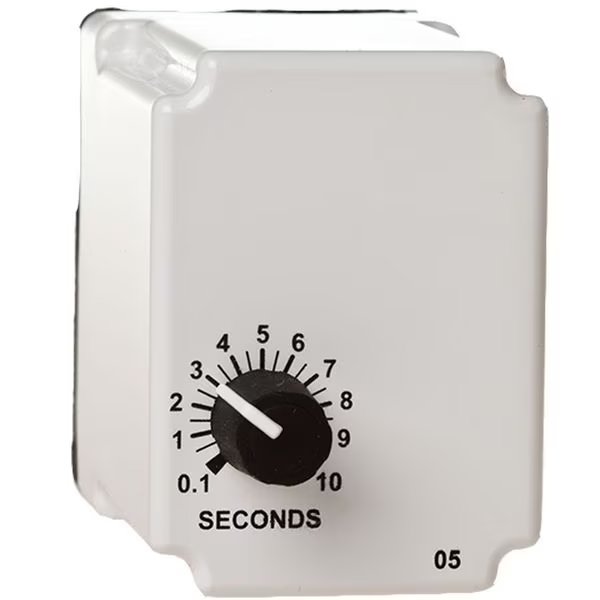

Single Function Timing Relay
Function - Timing Relay
Interval On
AC Contact Rating - Relay
10A @ 240V
DC Contact Rating - Relay
10A @ 30V
Base Type - Plug In Relay
Octal
Adjustment Method - Timer
Potentiometer
Min. Time Setting - Timer
3 sec
Power Consumption - Relay
2 VA
Max. Time Setting - Timer
5 min
Min. Time Setting
3.00 sec.
Adjustment Method
Potentiometer
Hz - Electrical
50 Hz, 60 Hz
Overall Height - Relay
3.1 in
Body Height - Relay
2.9 in
Socket
1EGP3, 1EGP5, 5X852
Item
Single Function Time Delay Relay
Electrical Connection
Socket
Contact Amp Rating (Resistive)
10A
Contact Material
Silver Nickel
Standards
CE Certified, CSA Certified, UL Listed, UL Socket
Adjustment Interface
Analog
Reset Method
Time-Limit Reset
Minimum Time Setting
3 sec
Minimum Operating Temperature
-18 Degrees F
Delay Function
Interval On
Contact Rating (AC)
10 A @ 240V
Electrical Operating Durability
100,000
Operating Time Accuracy
+0% -50% (Minimum Setting (Adjustable)), +2% 50ms (Fixed), +5% -0% (Maximum Setting (Adjustable))
Contact Rating (DC)
10 A @ 30V
Mechanical Operating Durability
10,000,000
Maximum Operating Temperature
122 Degrees F
Maximum Time Setting Range
1 - 59 min
Number of Delay Functions
1
Flat Pin Width
Not Applicable
Maximum Time Setting
5 min
Life
Mechanical: 2,000,000 operations; Full Load: 100,000 operations
Voltage Tolerance
AC Operation: +10/-15% of nominal at 50/60 Hz.; DC Operation: +10/-15% of nominal.
Temperature
-28°to 65°C (-18°to 149°F)
Maximum Setting (Adjustable)
+5%, -0%;
Minimum Setting (Adjustable)
+0%, -50%.
Timing Range
3 - 300 seconds
Enclosure Style
Plug-in case utilizing industry-standard 8 or 11 pin octal sockets
Repeat Accuracy (Constant Voltage u0026 Temperature)
+1% or 50ms, whichever is greater
Configuration / Contact Rating
DPDT u0026 SPDT. 10A @ 240V AC/30V DC, 1/2HP @ 120/240V AC (N.O.),1/3HP @ 120/240V AC (N.C.), B300 u0026 R300
Fixed
+2% or 100ms, whichever is greater
Output Contacts
10A @ 240V AC, 8A @ 28V DC, 1/2HP @ 240V AC, 1/4HP @ 120V AC, B300 u0026 R300
Country of Origin (subject to change)
United States
