| Item | Spring-Wound Timer |
| Type | Analog/Mechanical |
| Timing Range | 0 to 2 hr |
| Contact Form | SPDT |
| Hold Feature | No |
| Faceplate Color | Ivory |
| Max. Amps @ 125VAC | 20 A |
| Number of Gangs | 1 |
| HP @ 120V | 1 hp |
| HP @ 240V | 2 hp |
| Knob | Plastic |
| Max. Amps @ 277VAC | 10 A |
| Max. Amps @ 250VAC | 10 A |
| Standards | cCSAus, RU |
| Watts | Resistive Heater: 2500 to 2770 W, Tungsten Incandescent: 875 W |
| Operating Temp. Range | 40 to 120°C |
| Depth | 1-1/4 in |
| Width | 1-3/4 in |
| Input Voltage | 125/277 VAC |
| Height | 4-1/4 in |
| Application | Indoor Lighting Control, Outdoor Lighting Control, Motor Control, Air Movement & Ventilation, Bathroom Fans, Garage Lights, Storage Closets, Whirlpools, Whole House Fans, Energy Savings, Comfort & Convenience, Pool & Spa |
| Light Type | Incandescent, Fluorescent, CFL, LED |
| Applications | Air Movement & Ventilation Indoor Lighting Control Motor Control Outdoor Lighting Control |
| Input Voltage Range(s) | 125-277 VAC, 50/60 Hz |
| Switch Type | 2-Circuit (1) NO + (1) NC |
| Countdown Time | 2 hrs |
| Operation Mode | Countdown |
| Operating Temperature Max (°F) | 120 |
| Product Depth (in) | 1.25 |
| Wiring Configurations | Single |
| Application Compatibilities | CFL, Fluorescent, Incandescent, LED |
| Mechanism Type | Analog/Mechanical |
| Neutral Connection Required | No |
| Product Height (in) | 4.125 |
| Motor Load Ratings Ranges | 1 HP, 125 VAC, 2 HP, 250 VAC |
| Color | Ivory |
| Resistive Heater | 20 A, 2500 W, 125 VAC, 10 A, 2500 W, 250 VAC, 10 A, 2770 W, 277 VAC |
| Features | 2-Hour timer, SPDT (Single-Pole Double-Throw), Breaks circuit at end of timing cycle, No electricity required to operate, Replaces any standard or decorator single- or multi-gang wall switch, Automatically limits ON time for energy consuming loads, Quick and easy installation, Time-saving up front terminal connection with teeter-type terminals, Incandescent/fluorescent/CFL/LED compatible, No neutral connection is required |
| Operating Temperature Min (°F) | 40 |
| Product Width (in) | 1.75 |
| Wall Plate Configurations | Single-Gang, Multi-Gang |
| Tungsten Incandescent | 7 A, 125 VAC, 50 Hz, 7 A, 125 VAC, 60 Hz, 875 W |
| Tungsten (Incandescent) Range(s) | 7 A, 125 VAC, 50/60 Hz, 875 W |
| Hold Mode Included | No |
| Country of Origin (subject to change) | Tunisia |
| Package Quantity | 1 |

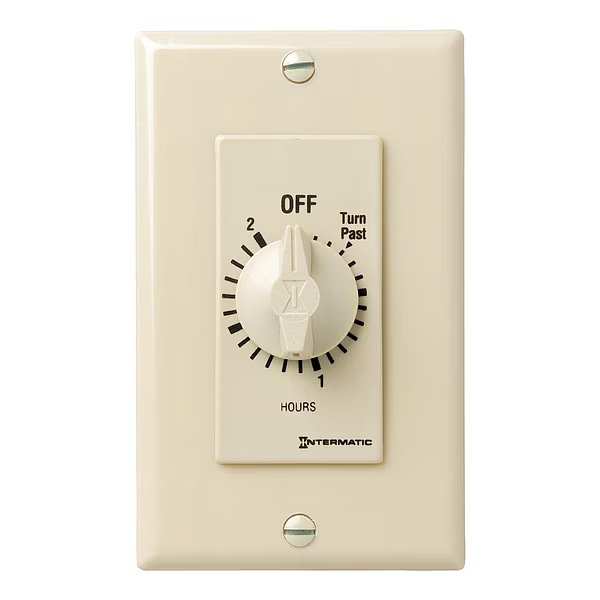

Timer, Spring Wound, INTERMATIC, Mfr# FD32H
$53,15
Free shipping will be applied on orders over $50
Spring-Wound Timer, Timing Range 0 to 2 hr, Contact Form SPDT, HP @ 120V 1 hp, HP @ 240V 2 hp, Max. Amps @ 125VAC 20 A, Max. Amps @ 250VAC 10 A, Max. Amps @ 277VAC 10 A, Number of Gangs 1, Hold Feature No, Faceplate Color Ivory, Knob Plastic
9999 in stock
Must order in multiples of 1
Subtotal:
$53.15
