| Property | Value |
|---|---|
| Switch Function | Off/On |
| Contact Form | 3PST |
| HP | 3/4 hp |
| Actuator Style | Bat |
| Amps | 10A @ 250VAC, 15A @ 125VAC |
| Number of Connections | 6 |
| Stem Length | 0.47 in |
| Terminals | Screw |
| Actuator Length | 0.68 in |
| Item | Toggle Switch |
| Operating Temp. Range | 32 Degrees to 185 Degrees F |
| Stem Dia. and Thread Size | 15/32-32 UNS-2A x 0.5 in dia |
| AC Contact Rating | 10 A @ 250 V, 15 A @ 125 V |
| Mounting Hole | 0.50 in dia |
| DC Contact Rating | Not Rated |
| IP Rating | Not Rated |
| Product Type | Toggle Switch |
| Series | H |
| Switch Function Configuration | On/None/Off |
| Stem Thread Size | 15/32-32 UNS-2A |
| Operating Temperature - Minimum | 32 Degrees F |
| NEMA Enclosure Rating | No Enclosure |
| Operator Illumination Style | Non-Illuminated |
| Number of Poles | 3 |
| Stem Diameter | 0.5 in |
| Mounting Hole Diameter | 0.5 in |
| Operating Temperature - Maximum | 185 Degrees F |
| Features | Not Sealed |
| Number of Positions | 3 |
| Terminal Connection Type | Screw Terminals |
| Actuator Material | Metal |
| Horsepower | 3/4 hp |
| Overall Height | 1.79 in |
| Resistance Properties | Not Applicable |
| Base Type | Not Applicable |
| Overall Width | 1.08 in |
| Overall Depth | 1.31 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

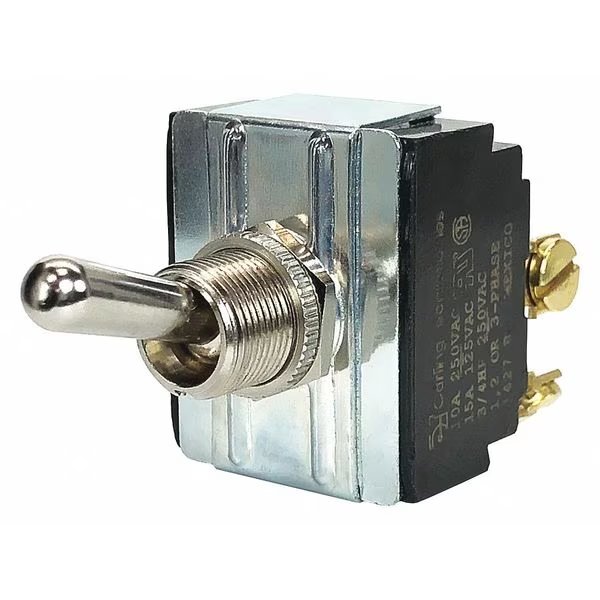

Toggle Switch, 3PST, 6 Connections, Off/On, 3/4 hp, 10A @ 250V AC, 15A @ 125V AC, Carling Technologies, Mfr#: HK254-73
$12.49
Free shipping will be applied on orders over $50
Toggle Switch, Contact Form 3PST, Number of Connections 6, Switch Function On/Off, AC Contact Rating 10 A @ 250 V, 15 A @ 125 V, HP 3/4 hp, Terminals Screw, Mounting Hole 0.50 in dia, DC Contact Rating Not Rated, Actuator Style Bat, Actuator Length 0.68 in, Stem Length 0.47 in, Stem Dia. and Thread Size 15/32-32 UNS-2A x 0.5 in dia, Operating Temp. Range 32 Degrees to 185 Degrees F
9999 in stock
Subtotal:
$12.49
