| Switch Function | Momentary On/Maintained Off/Maintained On |
| Contact Form | DPDT |
| HP | 1/2 hp |
| Actuator Style | Standard Lever |
| Amps | 10A @ 125VAC, 10A @ 250VAC, 10A @ 28VDC |
| Number of Connections | 6 |
| Stem Length | 0.47 in |
| Terminals | Screw |
| Actuator Length | 0.68 in |
| DC Contact Rating | 18A @ 28V DC |
| Special Features | Silver Cadmium Oxide Contacts |
| Recommended Use | Applications Requiring Military Qualification or Military Seal Rating |
| Operating Temp. Range | -85 Degrees to 160 Degrees F |
| Mounting Hole | 0.50 in dia |
| AC Contact Rating | 10A @ 277V AC |
| Actuator Color | Silver |
| Includes | Thermoset Phenolic Case |
| Item | Toggle Switch |
| Stem Color | Silver |
| Standards | UL/CSA and Military Qualification |
| Stem Dia. and Thread Size | 0.470 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

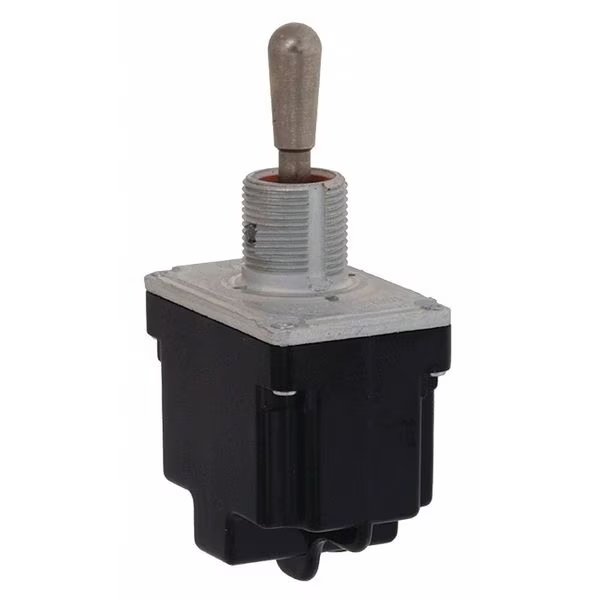

Toggle Switch (ON)-OFF-ON DPDT 10A @ 277V Screw Terminals, HONEYWELL, Mfr# 2TL1-5
$52,39
Free shipping will be applied on orders over $50
Toggle Switch, Contact Form DPDT, Number of Connections 6, Switch Function Momentary On/Off/On, AC Contact Rating 10A @ 277V AC, HP 1/2 hp, Terminals Screw, Mounting Hole 0.50 in dia, DC Contact Rating 18A @ 28V DC, Actuator Style Standard Lever, Actuator Length 0.68 in, Stem Length 0.47 in, Stem Dia. and Thread Size 0.470 in, Operating Temp. Range -85 Degrees to 160 Degrees F, Actuator Color Silver, Stem Color Silver, Special Features Silver Cadmium Oxide Contacts
9999 in stock
Must order in multiples of 1
Subtotal:
$52.39
