Switch Function | On/Off/On |
Contact Form | SPDT |
HP | 3/4 hp |
Actuator Style | Bat |
Amps | 15A @ 125 VAC, 10A @ 250VAC |
Number of Connections | 3 |
Stem Length | 0.469 in |
Terminals | Screw |
Actuator Length | 0.56 in |
Stem Color | Silver |
Mounting Hole | 0.50 in dia |
Includes | Panel Mounting |
Stem Dia. and Thread Size | 0.500 in |
Standards | CSA, RoHS, UL Recognized |
AC Contact Rating | 10A @ 250V AC, 15A @ 125V AC |
Actuator Color | Silver |
Item | Toggle Switch |
Circuit position down | On |
Certifications | CSA Certified |
Bushing Length | 0.469 in |
Product Length/Depth | 1.312 in |
Horsepower | 0.50 hp at 125 V, 0.75 hp at 250 V |
Product Height | 1.2 in |
Type | General purpose |
Amperage Rating | 15A at 125V, 10A at 250V |
Number Of Poles | Single-pole |
Circuit position up | On |
Throw type | Double-throw |
Circuit position center | None |
Product Width | .75 in |
Lever length | 0.563 in |
Country of Origin (subject to change) | Mexico |
Package Quantity | 1 |

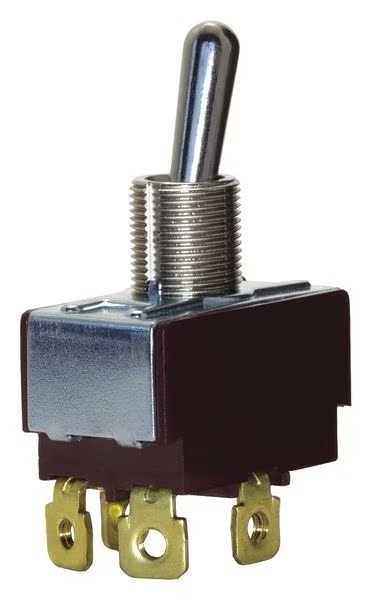

Toggle Switch, SPDT, 10A @ 250V, Screw, EATON, Mfr# 7502K13
$7,89
Free shipping will be applied on orders over $50
Toggle Switch, Contact Form SPDT, Number of Connections 3, Switch Function On/Off/On, AC Contact Rating 10A @ 250V AC, 15A @ 125V AC, HP 3/4 hp, Terminals Screw, Mounting Hole 0.50 in dia, Actuator Length 0.56 in, Stem Length 0.469 in, Stem Dia. and Thread Size 0.500 in, Actuator Color Silver, Stem Color Silver, Standards CSA, RoHS, UL Recognized, Includes Panel Mounting
9999 in stock
Must order in multiples of 1
Subtotal:
$7.89
