| Property | Value |
|---|---|
| Promotion Restriction | Not eligible for promotion |
| Item | Ultrasonic Thickness Gauge |

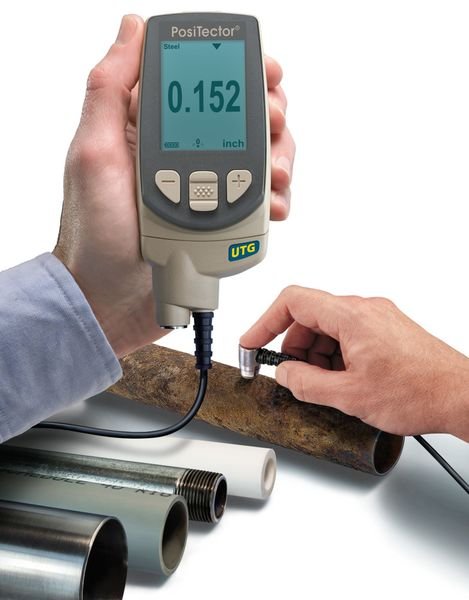

| Application | Evaluate The Effects of Corrosion or Erosion by Measuring the Thickness of Tanks, Pipes, or Any Structure Where Access is Limited To One Side |
| Base Material | Ferrous and Non-Ferrous |

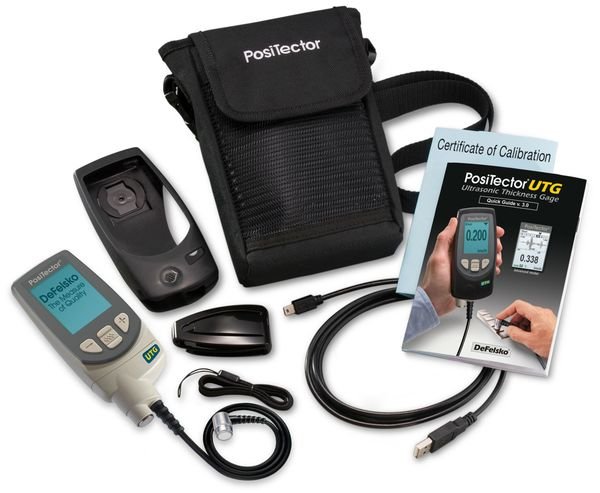

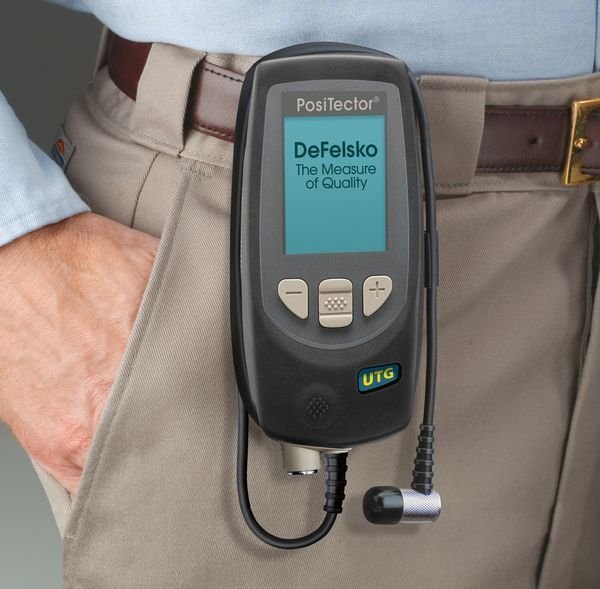

| Includes | Couplant, Protective Holster, Soft Carrying Case |
| Accuracy | +/-0.00 in, +/-0.01mm |
| Resolution (In./mm) | 0.001/ 0.01 |
| Data Storage | Yes |
| Manufacturers Warranty Length | 2 yr |
| Velocity Ranges | 0.0492 to 0.393 in/sec, 1250 to 10,000 mps |
| Measuring Range | 0.040 to 5.0 in (1 to 125mm) |
| Calibration Certificate | NIST |
| Recording Capacity | 250 |
| Standards | ASTM E797 |
| Frequency (MHz) | 5 |
| Measurement Rate | 6 readings/sec |
| Cord Length | 3 ft |
| Interface | USB |
| Minimum Thickness Measured | 0.04 in |
| Battery Voltage | 1.5V |
| Thickness Measurement Resolution | 0.001 in |
| Battery Size | AAA |
| Power Source | Battery |
| Thickness Measurement Accuracy | +/-0.001 |
| Number of Batteries Required | 3 |
| Batteries Included | Yes |
| Maximum Thickness Measured | 5 in |
| Calibration Certificate Type | NIST |
| Maximum Frequency | 5 MHz |
| Manufacturer Warranty Length | 2 yr |
| Battery Chemistry | Alkaline |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

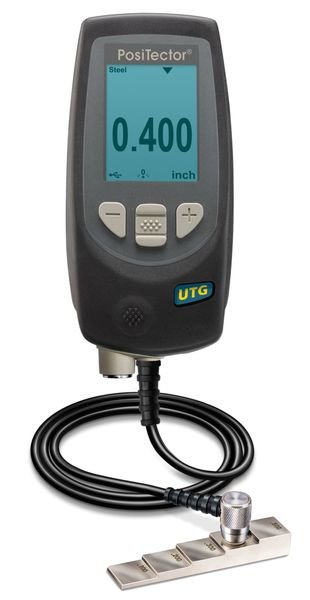

Ultrasonic Thickness Gage, Defelsko, Mfr#: POSITECTOR UTG C1
$1345.99
Free shipping will be applied on orders over $50
Ultrasonic Thickness Gauge, Includes Couplant, Protective Holster, Soft Carrying Case, Thickness Measurement Accuracy +/-0.001, Thickness Measurement Resolution 0.001 in, Calibration Certificate Type NIST, Maximum Frequency 5 MHz, Maximum Thickness Measured 5 in, Minimum Thickness Measured 0.04 in, Standards ASTM E797, Interface USB, Batteries Included Yes, Battery Chemistry Alkaline, Manufacturer Warranty Length 2 yr, Battery Size AAA, Battery Voltage 1.5V, Number of Batteries Required 3
9999 in stock
Subtotal:
$1345.99
