| Property | Value |
|---|---|
| Gasket Material | Buna N |
| Pressure (PSI) | 250 |
| Basic Pipe Fitting Material | Metal |
| Item | Union |
| Tube Size | 1/2 in |
| Connection | Tube x Tube |
| Basic Pipe Fitting Shape | Union |
| Specific Pipe Fitting Shape | Union |
| Pipe Fitting Connection Type | Tube |
| Length | 2.03 in |
| Temp. Range | -40 Degrees to 200 Degrees F |
| Type | Push to Connect |
| Material | Brass |
| Standards | DOT FMVSS 571.106, SAE J2494, SAE J2494-3 |
| Release Ring Material | Buna N |
| Specific Fitting Shape | Straight Connector |
| Compatible Tube Material | Nylon |
| Color | Gold |
| Fitting Side B Tube Outer Diameter | 1/2 in |
| Fitting Side A Tube Outer Diameter | 1/2 in |
| System of Measurement | Imperial |
| Includes Pre-Applied Thread Sealant | No |
| Fitting Side B Connection Type | Push-to-Connect |
| Fitting Side A Connection Type | Push-to-Connect |
| Application | Air |
| Fitting Material | Brass |
| Overall Length | 1 15/16 in |
| Release Type | Button |
| Maximum Operating Pressure | 250 psi |
| Minimum Operating Temperature | -40 Degrees F |
| Resistance Properties | Impact-Resistant |
| Maximum Operating Temperature | 200 Degrees F |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

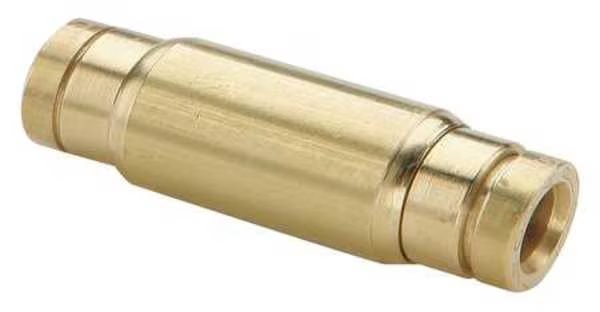

Union, 1/2 In, Parker, Mfr#: 62PTC-8
$9.44
Free shipping will be applied on orders over $50
Union, Application Air, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type Push-to-Connect, Fitting Side A Tube Outer Diameter 1/2 in, Fitting Side B Tube Outer Diameter 1/2 in, Fitting Material Brass, Color Gold, Includes Pre-Applied Thread Sealant No, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 15/16 in, Specific Fitting Shape Straight Connector, Release Type Button
9999 in stock
Subtotal:
$9.44
You must be logged in to post a review.
Reviews
There are no reviews yet.
