Motor Enclosure Design | Open |
Motor Thermal Protection | None |
Bearings | Ball |
Mounting Brackets | Thermoset |
Blower Stages | 3 |
Ambient Temperature | 40 Degrees C |
Motor Mounting Type | Lug |
Voltage | 36V DC |
CFM @ 2-In. Orifice | 78.5 cfm |
Phase | Single |
Discharge | Peripheral Bypass |
Motor Mounting Position | All Angle |
Overall Height | 7 13/16 in |
Replacement Brushes | 2UV71 |
Average Life | 500 hr |
Vacuum (H2O Sealed) | 74.0 |
Body Dia. | 5.7 in |
Motor Design | Universal AC/DC |
Max. Air Watts | 186 W |
Motor/Blower Type | Bypass |
Standards | UL Recognized (E47185) |
Item | Vacuum Motor |
Footnotes | 69, 72 |
Ins. Class | A |
Duty | Intermittent |
No. of Speeds | 1 |
Max. Amps | 12.6 A |
Overall Length | 7 13/16 in |
Bearing Protection | Air Sealed |
Mounting Bracket Material | Aluminum |
Inlet Tube Dia. | Not Applicable |
Voltage Compatibility | 36V DC |
Motor Application | Universal AC/DC Motor |
Max. Ambient Temp. | 40 Degrees C |
Frame | Non-Standard |
Motor Bearings | Ball |
Full Load Amps | 17.4 |
Nameplate RPM | 17,950 |
Duty Cycle | Intermittent |
Vacuum Rating | 74.1 |
Country of Origin (subject to change) | Mexico |
Package Quantity | 1 |

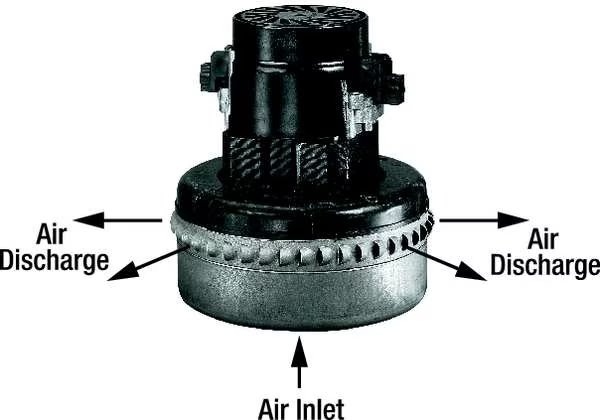

Vacuum Motor/Blower, Peripheral, 3 Stage, 1 Speed, Acustek, AMETEK, Mfr# 116512-13
$164,59
Free shipping will be applied on orders over $50
Vacuum Motor, Single Phase, Motor Design Universal AC/DC, Nameplate RPM 17,950, No. of Speeds 1, 36V DC Voltage, Full Load Amps 17.4, Non-Standard Frame, Motor/Blower Type Bypass, Max. Amps 12.6 A, Motor Thermal Protection None, Ins. Class A, Max. Ambient Temp. 40 Degrees C, Duty Cycle Intermittent, Motor Enclosure Design Open, Motor Mounting Type Lug, Motor Mounting Position All Angle, Max. Air Watts 186 W, Vacuum Rating 74.1, CFM @ 2-In. Orifice 78.5 cfm, Mounting Bracket Material Aluminum
9999 in stock
Must order in multiples of 1
Subtotal:
$164.59
