| Property | Value |
|---|---|
| Cartridge Valve Item | Cartridge Valve |
| Valve Cavity Size | C10-4 |
| Cartridge Valve Type | Directional Control Valve |
| Max. Pressure - Hydraulic Valves | 3,600 psi |
| Max. Flow - Hydraulic Valves | 7 gpm |
| Voltage | 115V AC, 12V DC, 24V DC |
| Way | 4 |
| Valve Cavity | C10-4 |
| Max. Pressure (PSI) | 3600 |
| Number of Positions | Three Positions |
| Center | Closed |
| Position | 3 |
| Valve Type | Spool-Type Solenoid Valve |
| Max. Flow GPM | 7 |
| Item | Threaded Cartridge Valve |
| Number of Ways | Four-Way |
| Application | 4 Way spool valves are often used for the raise / lower function of a double acting cylinder, or as a forward / reverse function of bi-directional motors. The center position can be used to stop the actuator in mid-stroke, or dump pump flow. |

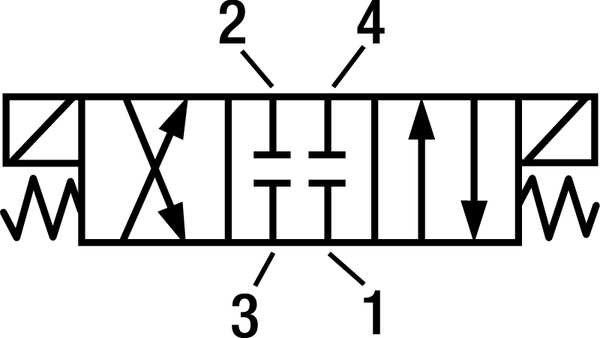

| Valve Ways and Positions | 4-Way/3-Position |
| Overall Width | 1 in |
| Overall Length | 7.29 in |
| Overall Height | 4.86 in |
| Body Material | Steel |
| Includes Filter | Filter Not Included |
| Filter Media | Not Applicable |
| Center Position | Closed Center |
| For Media | Mineral Oil, Synthetic Oil |
| Operating Temperature - Maximum | 200 Degrees F |
| Series | DSL105 |
| Filter Rating | Not Applicable |
| Adjustment Method | Not Applicable |
| Port Connection Type | Not Applicable |
| Port Connection Size | Not Applicable |
| Hex Size | 1 in |
| Valve Control | Directional Control |
| Operating Temperature - Minimum | -35 Degrees F |
| Valve Action | Normally Closed |
| Mounting | Block-Mounted |
| Includes Seals | Seals Included |
| Port-to-Port Length | Not Applicable |
| Inlet Pressure - Maximum | 3,600 psi |
| Venting | Not Applicable |
| Body Finish | Zinc Plated |
| Standards | ISO 4406 18/16/13 |
| Flow Rate - Maximum | 7 gpm |
| Pressure Setting - Maximum | 3,600 psi |
| Leakage | 160 cu in/min |
| Port Connection Gender | Not Applicable |
| Port Connection Dash Size | Not Applicable |
| Actuation Mechanism | Electrical |
| Action Type | Direct Acting |
| Cartridge Material | Steel |
| Fluid Viscosity - Maximum | 2,000 SUS |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |
Valve, Solenoid, C10-4, Parker, Mfr#: DSL105C1
$158.99
Free shipping will be applied on orders over $50
Threaded Cartridge Valve, Body Material Steel, Number of Positions Three Positions, Valve Action Normally Closed, Adjustment Method Not Applicable, Number of Ways Four-Way, Valve Cavity Size C10-4, Actuation Mechanism Electrical, Overall Length 7.29 in, Overall Width 1 in, Overall Height 4.86 in, Flow Rate - Maximum 7 gpm, Voltage 115V AC, 12V DC, 24V DC, Pressure Setting - Maximum 3,600 psi, Port Connection Dash Size Not Applicable, Valve Type Spool-Type Solenoid Valve
9999 in stock
