| Property | Value |
|---|---|
| For Use With | Intake or Exhaust Applications |
| Item | Air Freshener |
| Series | FRESH IN |
| Overall Length | 7 3/4 in |
| Frame Material | Galvannealed Steel |
| Overall Height | 7 3/4 in |
| Includes | Removable Terminal Block; Vapor Barrier Ring |
| Overall Width | 10 5/8 in |
| Standards | ASHRAE 62.2, UL 1995 |
| Blade Type | Flat Blade |
| Blade Material | Plastic |
| Housing Color | Black, Gray |
| Insulation | Polystyrene |
| Manufacturer Warranty Length | 5 yr |
| Nameplate Voltage | 24V AC |
| Frequency | 60 Hz |
| Duct Diameter | 6 in |
| Control Type | Low Voltage Remote Switch |
| Outside Width (In.) | 10 5/8 in |
| Intake Louver Outside Height | 7 3/4 in |
| Switch Action | Normally Closed |
| For Nominal Duct Diameter | 6 in |
| Blade Seal Material | Foam |
| Airflow Direction | Horizontal |
| Jamb Seal Material | Rubber |
| Rough Opening Shape | Rectangular |
| Maximum Air Pressure | Not Applicable |
| Closure Pressure Rating | Not Applicable |
| Closure Velocity Rating | Not Applicable |
| Nominal Duct Height | 6 in |
| Nominal Duct Width | 6 in |
| Free Area | Not Applicable |
| Frame Less Flange | 24 in |
| Frame Material Thickness | 24 ga |
| Pressure Drop @ 1000 fpm (AMCA 5.2) | Not Applicable |
| Rough Opening Diameter | 6 in |
| Counterbalanced | Not Applicable |
| Flange Type | Single Flange |
| Mounting Position | Horizontal, Vertical |
| Rough Opening Length | 6 3/8 in |
| Damper Application | Vent |
| Overall Diameter | 6 in |
| Rough Opening Width | 10.6 in |
| ACMA Leakage Class | 1 |
| Number of Panels | 1 |
| Fusible Link Temperature | Not Applicable |
| Maximum Air Velocity | Not Applicable |
| Flange Width | 2 in |
| Damper Type | Dynamic |
| Blade Orientation | Not Applicable |
| For Duct Shape | Round |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

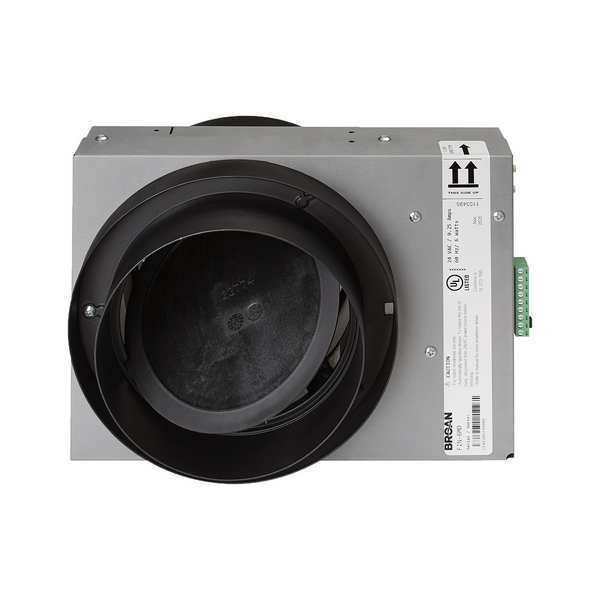

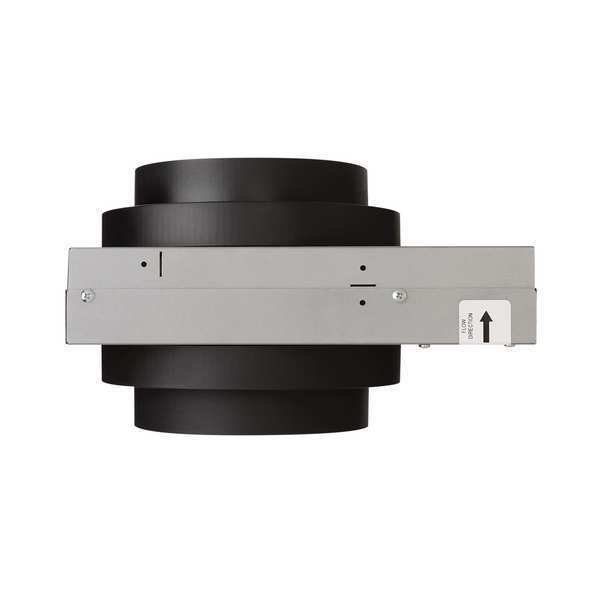

Ventilation, Broan, Mfr#: FIN-6MD
$231.99
Free shipping will be applied on orders over $50
7.75 In.L-H 10.7 In.W Squ Motrzd Vent Damper, For Nominal Duct Diameter 6 in, Damper Application Vent, Number of Panels 1, Overall Height 7 3/4 in, Overall Length 7 3/4 in, Rough Opening Shape Rectangular, For Duct Shape Round, Overall Width 10 5/8 in, Frame Material Thickness 24 ga, Blade Material Plastic, Maximum Air Pressure Not Applicable, Overall Diameter 6 in, Rough Opening Length 6 3/8 in, Rough Opening Width 10.6 in, Damper Type Dynamic, Maximum Air Velocity Not Applicable
