| Property | Value |
|---|---|
| Promotion Restriction | Not eligible for promotion |
| Item | Hydraulic Cylinder |
| Bore Dia. | 2.5 in |
| Stroke Length | 10 in |
| Max. Pressure | 3000 |
| Retracted Length | 18 in |
| Rod Dia. | 1.5 in |
| Port Size | SAE 8 |
| Column Load | 14721 lbs |
| Extended Length | 28 in |
| Pin Dia. | 1 in |
| Weight | 20 lbs. |
| Extended | 28 in |
| Max Pressure PSI | 3000 |
| Retracted | 18 in |
| Pin Diameter | 1 in |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

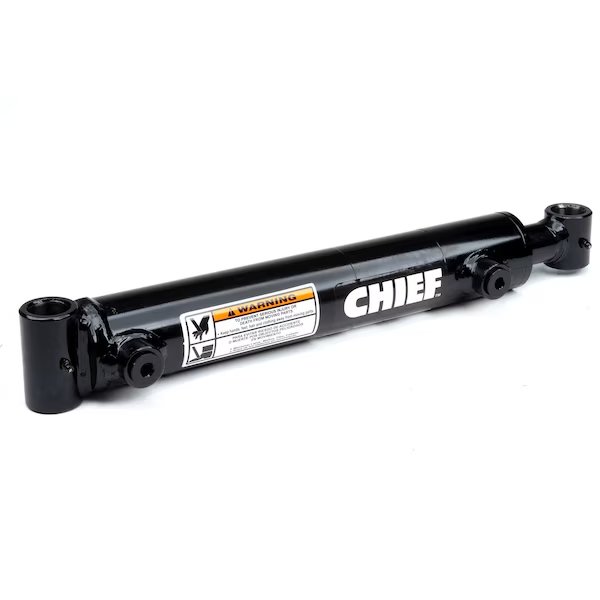

WT Welded Hydraulic Cylinder: 2.5 Bore x 10 Stroke - 1.5 Rod, Chief, Mfr#: 212690
$134.99
Free shipping will be applied on orders over $50
This 2.5 in bore x 10 in stroke Chief WT Welded Cross-Tube Hydraulic Cylinder is Bailey International's strongest cylinder, designed for heavier loads. The WT features a heavy duty piston with stem, complete with wear rings to reduce friction. These cylinders are ideally suited for construction, agricultural applications, metal fabricating, waste/recycling and OEM trailer manufacturing.
9999 in stock
