| Property | Value |
|---|---|
| Item | Wall Switch |
| Switch Type | Double Pole/Double Throw |
| Switch Style | Toggle |
| Amps AC | 20 A |
| Color | Black |
| Voltage AC | 120 to 277 |
| Locking | Yes |
| Switch Function | Maintained |
| Wiring Method | Back, Side |
| Application Environment | Industrial |
| Rated HP | 1 |
| Standards | UL Listed |
| Antimicrobial | No |
| Voltage | 120/277V AC |
| Current Rating | 20 A |
| Voltage Rating | 120/277V AC |
| Maximum Wire Size | 10 AWG |
| Overall Height | 1.2 in |
| Number of Switches | 1 |
| Minimum Wire Size | 14 AWG |
| Horsepower Rating | 1 hp |
| Minimum Operating Temperature | -40 Degrees F |
| Wire Connection Type | Screw Terminals |
| Overall Width | 1.3 in |
| Maximum Operating Temperature | 75 Degrees C |
| Market | Industrial |
| Resistance Properties | Impact Resistant |
| Features | Large Brass Binding Head Screws with Deep Slots, Lock Circuits On or Off, Strip Gauge for Accurate Wiring |
| Type | Toggle |
| Width | 1.31 in |
| Length | 4.06 in |
| Height | 1.19 in |
| Style | Double Pole Double Throw |
| Operating Temperatures | Max Continuous- 75 Degrees C, Minimum- -40 Without Impact |
| Flammability | UL 94V-2 |
| Overload | Minimum 4.8 times rated current for 100 cycles |
| Max. Continuous Current | 20A |
| Product Type | Toggle-switches |
| Max. Working Voltage | 277V AC |
| Switch Grade | Industrial |
| Operating Temperature | Max. continuous: 75ΓΒ°C; Min. continuous: -40ΓΒ°C without impact |
| Wiring Style | Back and Side Wired |
| Dielectric Voltage | Withstands 1500V AC minimum for 1 minute |
| Nylon Wall Plate | NP1 |
| Toggle Color | Black |
| Amperage | 20A |
| Switch Handle Positions | 3 |
| Terminal Accommodations | #14 AWG min. - #10 AWG max. Solid and stranded copper wire only |
| Listing and Certifications | UL Listed and CSA Certified |
| Temperature Rise | 30ΓΒ°C maximum at rated current |
| Application | Back and Side Wired |
| Amperage Rating | 20 A |
| Performance | Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minutenElectrical - Max. Continuous Current - 20AnElectrical - Max. Working Voltage - 277V ACnElectrical - Overload - Minimum 4.8 times rated current for 100 cyclesnElectrical - Temperature Rise - 30ΓΒ°C maximum at rated currentnEnvironmental - Flammability - UL 94V-2nEnvironmental - Operating Temperature - Max. continuous: 75ΓΒ°C, Min. continuous: -40ΓΒ°C without impactnMechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. Solid and stranded copper wire only |
| Temperature Rise - Max. | 30ΓΒ°C maximum at rated current |
| Action | DPDT |
| Wire Size | #14 AWG to #10 AWG |
| Series | Extra Heavy Duty |
| Connectivity | Back and Side Wired |
| Number Of Poles | Double Pole |
| Current / Amperage Rating | 20 A |
| Industry Standard(s) | UL Listed |
| Voltage Rating Description | 120-277 VAC |
| Dimensions | 4.06 in x 1.31 in x 1.19 in |
| Dielectric Strength | Withstands 1500V AC minimum for 1 minute |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

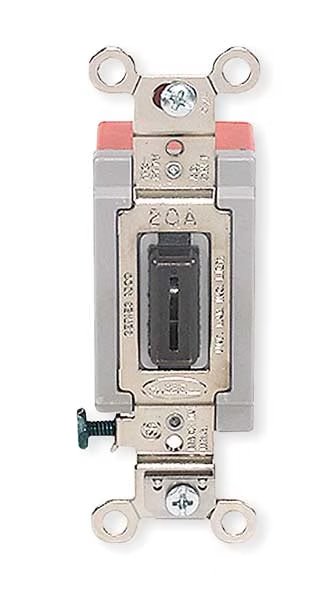

Wall Swtch, 2-Pol, 3-Positn, Center Off, 20A, Hubbell, Mfr#: HBL1386L
$79.37
Free shipping will be applied on orders over $50
Wall Switch, Color Black, Current Rating 20 A, Switch Function Maintained, Switch Type Double Pole/Double Throw, Voltage Rating 120/277V AC, Wiring Method Back, Side, Horsepower Rating 1 hp, Maximum Wire Size 10 AWG, Minimum Wire Size 14 AWG, Number of Switches 1, Resistance Properties Impact Resistant, Standards UL Listed, Switch Style Toggle, Wire Connection Type Screw Terminals, Features Large Brass Binding Head Screws with Deep Slots, Lock Circuits On or Off, Strip Gauge for Accurate Wiring
9999 in stock
