Welded Hydraulic Cylinder: 2 Bore x 30 Stroke - 1.25 Rod, Bailey, Mfr#: 288317

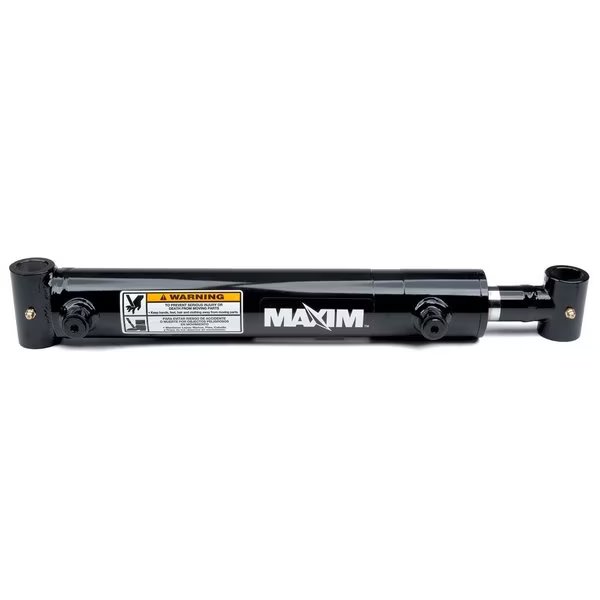

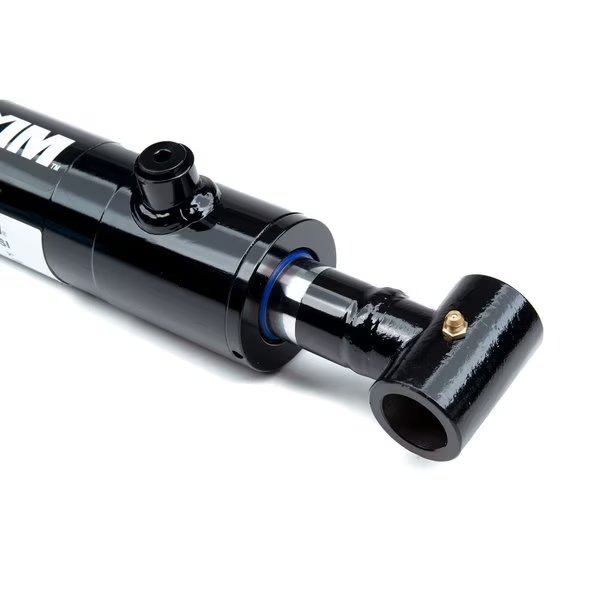

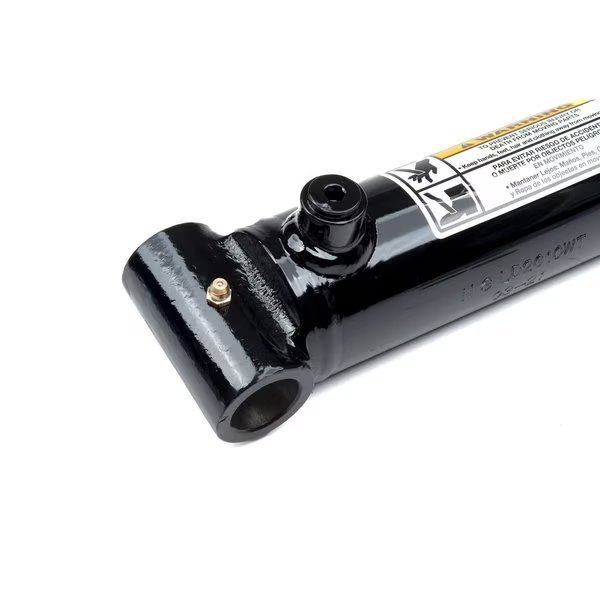

This Maxim WT welded hydraulic cylinder, rated at 3000 PSI, has a 2 in. bore X 30 in. stroke. The Maxim WT is Bailey’s best value cylinder with cross-tube mounting. Designed for demanding double-acting applications this welded cylinder exceeds the highest standards and is built to ensure maximum reliability and performance. With a compact design WT cylinders are also ideal for mobile applications where space is at a premium.

The Maxim WT is packed with these features:

• Engineered with a robust ductile iron piston for unparalleled durability in demanding environments.
• Enhanced security and stability ensured by the Grade 8 zinc-plated lock nut.
• Reliable sealing mechanism featuring a nitrile O-ring with hytrel backup for consistent, leak-free performance.
• Exceptional rod-sealing capabilities provided by the PolyPak design, incorporating a polyurethane U-cup with a Nitrile O-ring expander.
• Sturdy steel cross tube mounts serve as reliable end mounts, ensuring stability and facilitating effortless installation for hydraulic systems.
• Uncompromising seal integrity guaranteed by the piston's O-ring for its inner diameter and Hallite 755 piston seal with wear rings for the outer diameter.
• Finished in a sleek black coating, not only enhancing its aesthetics but also offering protection against corrosion for long-lasting performance.
