| Type | TrueZONE(R) 3-Zone Panel |
| Includes | AT140A1042 40 VA transformer, DATS C7735A1000 Discharge Air Temperature Sensor |
| Connection | Push-Button Terminals |
| For Use With | Redlink TM used with 3RCP1 Wireless Adapter |
| Requires | 2 Heat, 2 Cool Thermostat |
| Application | Controls Air Flow In Heating And Cooling Systems |
| Color | Gray |
| Width (In.) | 8 in |
| Ambient Temp. Range | -20 to 150 |
| Voltage (AC) | 24 |
| Terminal Designations | C, G, L, M1, M4}M6, O/B, R, Rc, W, W1/E, W2, Y, Y1, Y2 |
| Output Amps | 10 VA |
| Height (In.) | 11 1/2 in |
| Depth (In.) | 2 in |
| Power Method | 24 Vac |
| Item | Zone Panel |
| Product Type | Zone Panel |
| Overall Dimensions H x W | 11 1/2 in x 8 in |
| Maximum Ambient Temperature | 165 Degrees F |
| Number of Zones | 3 |
| Connection Type | Push-Button Terminals |
| Requires Thermostat Type | 2 Cool, 2 Heat |
| Overall Width | 8 in |
| Full Load Current | 7.5 A |
| Nameplate Voltage | 24V AC |
| Housing Color | Gray |
| Overall Height | 11 1/2 in |
| Minimum Ambient Temperature | -40 Degrees F |
| Overall Depth | 1 7/8 in |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

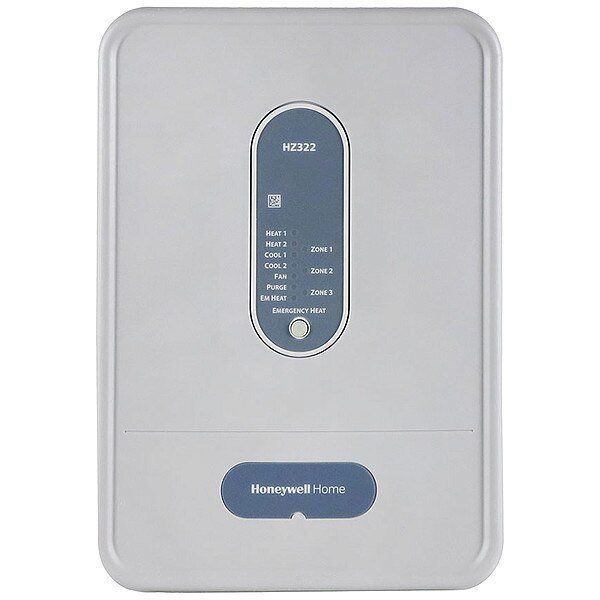

Zone Panel, 3 Zone, Output Amps 10 VA, HONEYWELL HOME, Mfr# HZ322
$229,99
Free shipping will be applied on orders over $50
Zone Panel, Overall Height 11 1/2 in, Overall Width 8 in, Requires Thermostat Type 2 Cool, 2 Heat, Terminal Designations C, G, L, M1, M4}M6, O/B, R, Rc, W, W1/E, W2, Y, Y1, Y2, Number of Zones 3, Housing Color Gray, Product Type Zone Panel, Nameplate Voltage 24V AC, Includes AT140A1042 40 VA transformer, DATS C7735A1000 Discharge Air Temperature Sensor, Minimum Ambient Temperature -40 Degrees F, Maximum Ambient Temperature 165 Degrees F, Overall Depth 1 7/8 in
9999 in stock
Must order in multiples of 1
Subtotal:
$229.99
