| Type | TrueZONE(R) 3-Zone Panel |
| Includes | AT140A1042 40 VA Transformer, AT175A1008 75 VA Transformer, DATS C7735A1000 Discharge Air Temperature Sensor (DATS), Slave Damper Control Relay |
| For Use With | True Zone Systems |
| Connection | Push-Button Terminals |
| Power Method | 24 Vac |
| Requires | 1 Heat, 1 Cool Thermostat |
| Output Amps | 6.25 VA |
| Voltage (AC) | 24 |
| Item | Zone Panel |
| Width (In.) | 8 in |
| Depth (In.) | 2 in |
| Height (In.) | 8 1/8 in |
| Color | Gray |
| Ambient Temp. Range | -20 to 150 |
| Application | Controls Air Flow In Heating And Cooling Systems |
| Terminal Designations | C, G, M1, M4, M6, R, RC, W, Y |
| Full Load Current | 6.25 A |
| Minimum Ambient Temperature | -40 Degrees F |
| Overall Height | 8 1/8 in |
| Requires Thermostat Type | 1 Cool, 1 Heat |
| Housing Color | Gray |
| Maximum Ambient Temperature | 165 Degrees F |
| Nameplate Voltage | 24V AC |
| Overall Width | 8 in |
| Overall Dimensions H x W | 8 1/8 in x 8 in |
| Overall Depth | 1 7/8 in |
| Product Type | Zone Panel |
| Number of Zones | 3 |
| Connection Type | Push-Button Terminals |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

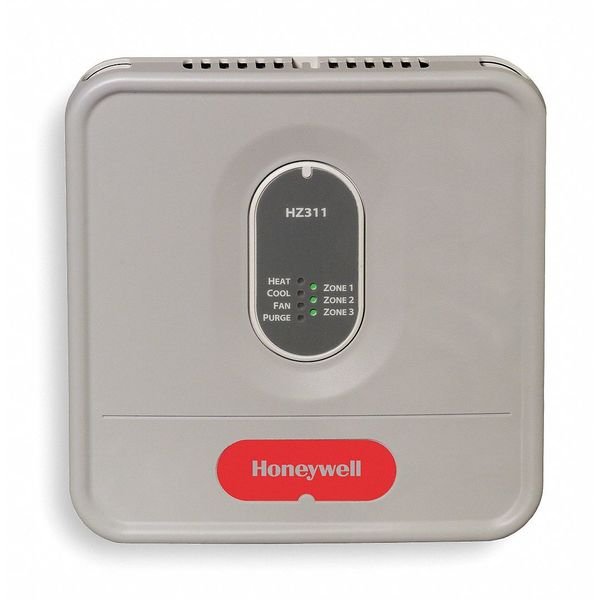

Zone Panel, 3 Zone, Output Amps 6.25 VA, HONEYWELL HOME, Mfr# HZ311
$202,99
-$6.09 / ea
with subscription
Free shipping will be applied on orders over $50
Zone Panel, Overall Height 8 1/8 in, Overall Width 8 in, Requires Thermostat Type 1 Cool, 1 Heat, Terminal Designations C, G, M1, M4, M6, R, RC, W, Y, Number of Zones 3, Housing Color Gray, Product Type Zone Panel, Nameplate Voltage 24V AC, Includes AT140A1042 40 VA Transformer, AT175A1008 75 VA Transformer, DATS C7735A1000 Discharge Air Temperature Sensor (DATS), Slave Damper Control Relay, Minimum Ambient Temperature -40 Degrees F, Maximum Ambient Temperature 165 Degrees F
9999 in stock
Must order in multiples of 1
Subtotal:
$202.99
You must be logged in to post a review.
Reviews
There are no reviews yet.
