Item | Linear Ball Bearing |
Type | Closed |
Bore Dia. | 0.5 in |
Outside Dia. | 7/8 in |
Material | Delrin |
Dynamic Load Capacity (Lb.) | 265 |
Length (In.) | 1 1/4 in |
Withstand Temp. (Deg. F) | 185 Degrees F |
Dynamic Load Capacity (N) | 265 lbf |
Static Load Capacity (Lb.) | 360 lb |
Temp. Range (F) | 185 |
Inside Dia. Tolerance | -0.0005 |
For Use With | Thomson Shafting |
Self-Alignment | Self-Aligning |
Seal | Yes |
Shaft Dia. (In.) | 0.5 in |
Retention Hole Dia. (mm) | 0.13 in |
Between Grooves (mm) | 1.032 in |
Retention Hole Location | 0.13 |
Series | Super Smart |
Inside Dia. | 1/2 in |
Static Load Capacity (N) | 360 lbf |
System of Measurement | Inch |
Included Wiper Seals | Two Integral Wipers |
Brand & Series | THOMSON Super Smart |
Maximum Operating Temperature | 185 Degrees F |
Operating Temperature Range | 185 Degrees F |
Country of Origin (subject to change) | Mexico |
Package Quantity | 1 |

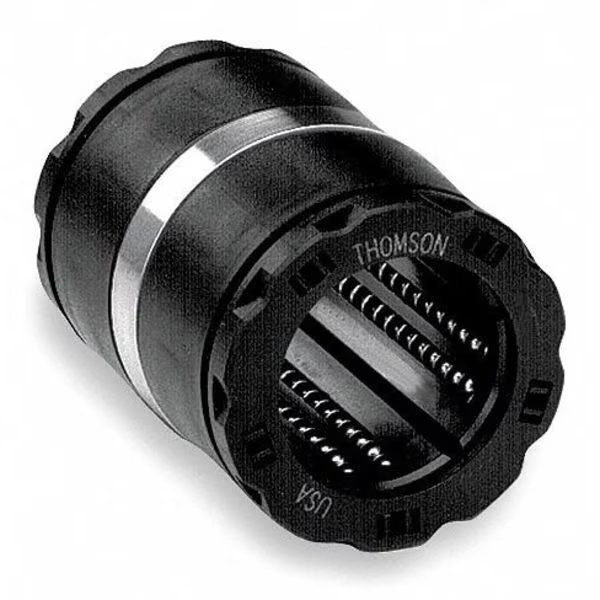

Ball Bushing Bearing, Closed, Bore .500 In, THOMSON, Mfr# SS6U8WW
$46,69
Free shipping will be applied on orders over $50
Linear Ball Bearing, Type Closed, Inside Dia. 1/2 in, Outside Dia. 7/8 in, Material Delrin, Accelerated Speed -, Between Grooves (mm) 1.032 in, Dynamic Load Capacity (N) 265 lbf, For Use With Thomson Shafting, Inside Dia. Tolerance -0.0005, Maximum Operating Temperature 185 Degrees F, Length (In.) 1 1/4 in, Retention Hole Dia. (mm) 0.13 in, Retention Hole Location 0.13, Seal Yes
9999 in stock
Must order in multiples of 1
Subtotal:
$46.69
