| Item | Instant Reverse Motor |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Dripproof |
| HP | 1/2 |
| Nameplate RPM | 1,625 |
| Frame | 56 |
| Voltage | 115V AC |
| Full Load Amps | 5 |
| Phase | Single |
| Motor Thermal Protection | Manual |
| Conduit Box Location | Interior |
| Manufacturers Warranty Length | 18 mo |
| Bolt Circle Dia. | 5 1/8 in |
| Voltage Compatibility | 115V AC |
| Stud Size | 8-32 X 2 |
| RPM Range | 1,601-1,700 |
| Motor Frame Material | Steel |
| Motor Mounting Type | Cradle Base |
| Length Less Shaft | 8 1/16 in |
| Nominal Efficiency | 63 % |
| Includes | Key |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| No. of Speeds | 1 |
| Conduit Box Position | F1 |
| Motor Application | Garage/Gate Opener |
| Extended Thru-Bolts | No |
| Number of Wires | 3 |
| Motor Shaft Design | Keyed |
| Weight | 22 lb |
| Usable @ 200V | No |
| Overall Length | 9 15/16 in |
| Usable @ 208V | No |
| Motor Bearings | Ball |
| Motor Service Factor | 1 |
| Shaft Length | 1 7/8 in |
| Shaft Dia. | 5/8 in |
| Duty Cycle | Continuous |
| Hz | 60 |
| Standards | CSA, UL Recognized |
| Country of Origin (subject to change) | Mexico |
| Package Quantity | 1 |

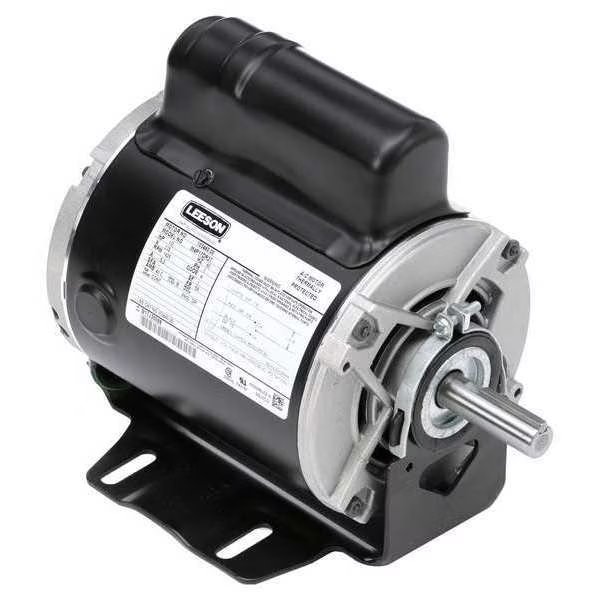

Instant Reverse Motor, 1/2hp, Phase Single, LEESON, Mfr# 103460.00
$428,99
-$428.99 / ea
with subscription
Free shipping will be applied on orders over $50
Instant Reverse Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 HP, Nameplate RPM 1,625, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5, 56 Frame, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Manual, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Number of Wires 3, Motor Frame Material Steel, Shaft Dia. 5/8 in, Shaft Length 1 7/8 in, Motor Shaft Design Keyed
9999 in stock
Must order in multiples of 1
Subtotal:
$428.99
