| Item | Phase Monitor Relay |
| Item - Relay | Phase Monitor Relay |
| Input or Control Voltage | 190 to 500V AC |
| AC Contact Rating - Relay | 10A @ 277V |
| DC Contact Rating - Relay | 10A @ 30V |
| Number of Pins - Relay | 12 |
| Mounting - Relay | DIN Rail |
| Contact Form - Relay | DPDT |
| Pick Up Range | 190 to 500VAC |
| Over Voltage | Fixed 110% of Line Voltage Setting |
| Drop-Out Range | 80% to 95% |
| Under Voltage | 171 to 450V AC |
| Phase Loss Sensitivity | Yes |
| Phase Loss Time Delay | 0.1 sec |
| Phase Reversal | Yes |
| Phase Reversal Time Delay | 0.1 sec |
| Phase Unbalance | 2 to 10% |
| Phase Unbalance Time Delay | 0.3 to 30.0 sec |
| Restart | Auto, Manual |
| Restart Time Delay | 1 to 300 sec |
| Contact Form | DPDT |
| Body Depth - Relay | 2.2 in |
| Phase | 3 |
| Contact Amp Rating (Resistive) | 10A @ 480/600VAC, 20A @ 28VDC |
| Pins | 0 |
| Input Voltage | 190 to 500V AC |
| Body Height - Relay | 3.5 in |
| Base Type | DIN Rail |
| Trip Delay | Power Up and Restart After Fault Clear: 1.00 to 300.0 sec., Phase Loss and Reversal: 100 msec., Phase Unbalance: 0.30 to 30.0 sec., Undervoltage: 0.30 to 30.0 sec., Overvoltage: 0.30 to 30.0 sec. |
| Number of Contacts | 2 |
| Overall Height - Relay | 2.4 in |
| Body Width - Relay | 2.1 in |
| Input or Control Voltage Range | 190 to 500VAC |
| Standards | CE Certified, cULus Listed |
| Electrical Connection Type | Screw |
| Overall Depth | 2.4 in |
| Undervoltage | 190 to 500V AC |
| Mounting Style | DIN Rail |
| Socket Code Configurator | DIN-Rail / 0 |
| Power Consumption | 40 VA |
| Contact Rating (DC) | 10 A @ 30V |
| Maximum Switching Capacity | 40 VA |
| Body Width | 2.1 in |
| Mechanical Operating Durability | 10,000,000 |
| Minimum Operating Temperature | -18.4 Degrees F |
| Relay Mounting Style | DIN-Rail |
| Body Height | 3.5 in |
| Frequency | 50/60 Hz |
| Body Depth | 2.4 in |
| Current Rating | 10 A |
| Number of Pins | 0 |
| Maximum Operating Temperature | 149 Degrees F |
| Maximum Switching Voltage | 550V |
| Monitored Parameters | Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage |
| Overvoltage | Fixed 110% of Line Voltage Setting |
| Contact Rating (AC) | 10 A @ 277V |
| For Use With | Sensors |
| Electrical Operating Durability | 100,000 |
| Minimum/Maximum Voltage | 156-550V (PMDU), 77-152V (PMD120): 345-660V (PMD575), all 50/60Hz.+5% |
| Enclosure Style | Mounts on 35mm DIN rail or panel mounted, DIN-Rail |
| Life | Mechanical: 10,000,000 operations, Full Load: 100,000 operations |
| Output | 10A DPDT |
| Output Contacts | 10A @ 277V AC/30V DC, 1/2HP @ 120/240V AC (N.O.),1/3HP @ 120/240V AC (N.C.), B300 Pilot Duty, R300 (N.O.) |
| Protection | Phase Loss, Phase Reversal, Voltage Unbalance, Undervoltage & Overvoltage |
| Temperature | -28°to 65°C (-18°to 149°F) |
| Configuration / Contact Rating | DPDT. 10A @ 277V AC/30V DC, 1/2HP @ 120/240V AC (N.O.), 1/3HP @ 120/240V AC (N.C.) |
| Reset | As standard, the PMD Series relays are in the Automatic Reset mode. However, they can be set in the Manual Reset mode by connecting an external N.C. switch across terminals 4 and 5. Upon application of line voltage, the PMD Series will go into Manual Reset mode if it recognizes a closure across terminals 4 and 5. After a fault clears, the relay will not reset until the N.C. switch is opened. |
| Load (Burden) | Less than 40 VA |
| Monitored Voltage | 190-500V AC |
| Country of Origin (subject to change) | United States |
| Package Quantity | 1 |

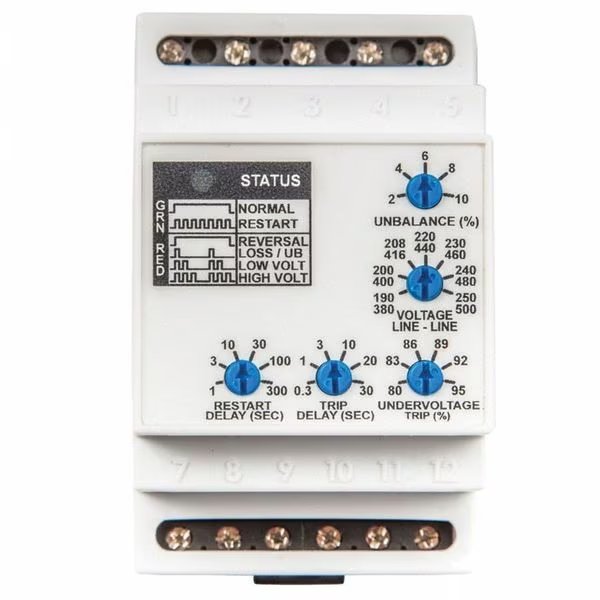

3 Phase Monitor Relay, DPDT, 500VAC, 0 Pin, MACROMATIC, Mfr# PMDU
$130,99
Free shipping will be applied on orders over $50
Phase Monitor Relay, Contact Form DPDT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 10 A @ 30V, Current Rating 10 A, Input Voltage 190 to 500V AC, Monitored Parameters Overvoltage, Phase Loss, Phase Reversal, Phase Unbalance, Undervoltage, Number of Pins 12, Restart Auto, Manual, Restart Time Delay 1 to 300 sec, Mounting Style DIN Rail, Body Depth 2.4 in, Body Height 3.5 in, Body Width 2.1 in, Electrical Operating Durability 100,000, For Use With Sensors, Frequency 50/60 Hz
9999 in stock
Must order in multiples of 1
Subtotal:
$130.99
